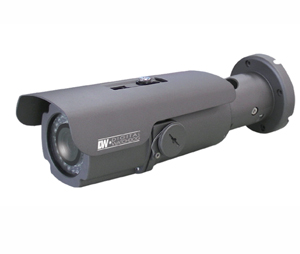

Model: DWCMB421TIR650
Features:
- 2.1 Megapixel Image Sensor (1080p, 30fps)
- Wide Dynamic Range (WDR)
- Triple Codecs (H.264, MJPEG, MPEG4) with Simultaneous Dual-Stream
- 6~50mm Remote Auto Focus Lens
- Smart IR™ with Intelligent Camera Sync. 150ft Range
- True Day/Night with Mechanical IR Cut Filter
- Smart DNR™ 3D Digital Noise Reduction
- Manual IR Activation
- Auto Gain Control (AGC)
- Back Light Compensation (BLC)
- Auto White Balance (AWB)
- Programmable Privacy Zones
- Motion Detection
- Micro SD/SDHC Class 10 Card Slot for Emergency Backup [Card Not Included]
- Alarm Sensor Input
- Relay Output
- Web Server Built-in
- PoE and DC12V
- OnVIF Compliant, Profile S
- IP66 Certified (Weather Resistant)
Description:
The MEGAPIX™ IP cameras provide real-time 2.1MP (1080P) resolution with features such as 3D DNR, WDR and Smart IR, delivering superb image in any environment. And PoE simplifies installation, connecting power and network through a single cable. All cameras are OnVIF compliant, guaranteeing successful integration with any open platform solution.
Smart DNR™ 3D Digital Noise Reduction:
Smart DNR™ 3D Digital Noise Reduction increases the camera's clarity in very low light environments by using a unique algorithm to clean electronic noise signals that can reduce the camera's visibility and trigger false motion detection events. Digital Watchdog's special noise reduction technology allows the camera to produce clearer images in both color and B/W in low light without creating lag or ghost effects in the image.
PoE Support To Power IP Cameras Locally:
The NVR's local PoE interface enables the NVR, combined with the DWC-BVI2IR, 2.1MP bullet cameras as a simple plug-n-play solution with the cameras powered, configured and controlled all from the NVR's local GUI.
Smart IR™:
Smart IR™ adjusts the image for IR cameras to eliminate LED light reflection and white spots in the image. By breaking down the camera's field of view into five zones, Smart IR allows for even distribution of the IR light. This prevents excessive illumination on images that are in the front of the scene and offers a clear image in B/W without any loss of detail.
TDN [True Day/Night] with IR Cut Filter:
During daylight, the IR cut filter allows visible light to pass through, reflecting the unwanted infrared light. In low light environments, where artificial or external light is not available, the cut filter is removed from in front of the lens, allowing the camera to capture the infrared light that given out from the infrared LEDs, to capture as much light as possible to produce brighter images.
Triple Codecs (H264., MJPEG, MPEG4) with Simultaneous Dual-Stream:
The cameras allow you to optimize your bandwidth usage, by offering simultaneous streaming. This allows you to stream high resolution for live monitoring and motion events, and setup a lower resolution streaming profile for when no activity is detected. This allows the camera to seamlessly transition between low and high resolution streams to maximize bandwidth usage, reduce network traffic and improve your overall system's performance and power.
Wide Dynamic Range (WDR):
Wide Dynamic Range technology mechanically allows to capture an entire scene in challenging lighting conditions. One shutter is set to a short exposure, capturing the bright areas in the FoV, while the other is set for a long exposure, capturing the dark areas in the FoV. The camera then interlaces the images and combines them, capturing both areas with no loss of detail. This allows for an image capture even when there are very bright and dark areas in the camera's field of view or images are distorted by a strong backlight. |
