Dedicated Micros DMI-DMICEDN3UL

copy to clipboard

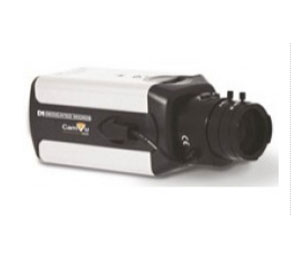

Dedicated Micros DMI-DMICEDN3UL 1/3" Day/Night Security Camera

enlarge
enlarge
× This image is for a similar product but it will differ in size, color and/or other attributes.
Dedicated Micros DMI-DMICEDN3UL 1/3" Day/Night Security Camera
More from Dedicated Micros
Price: $393.44 USD
Ships From
Comments (Optional)
This item is not in stock and typically ships in 1 business day.

1-844-809-3667

Sales
Technical Support
Product Description:
Dedicated Micros DMI-DMICEDN3UL 1/3" Day/Night Security Camera
Manufacturer: Dedicated Micros
Model: DMICEDN3UL
Product Type: 1/3" Day/Night Security Camera
Description:
The DM-ICE-DN3U-L-N is a professional security camera from Dedicated Micros which is designed to provide day and night surveillance monitoring within a range of different setups. The DM-ICE-DN3U-L-N surveillance camera comes with a 0.7lux illumination, 540TV lines, a 1/3" HAD CCD sensor, True day/night sensitivity, protection against lightning strikes, a 0.45 gamma correction, as well as a 50dB SNR, an automatic white balance, and DSP technology. The DM-ICE-DN3U-L-N surveillance video camera also features a back-focus thumbwheel for easy setup and quality picture capturing, compact size with lightweight handling, a die cast zinc casing, a C/CS mount, plus outdoor compatibility. This security camera is able to be used in a range of installations, and can easily provide high use as a long term surveillance camera in outdoor environments.
Features:
  • True Day/Night sensitivity for sensitivity to IR light at night and true color rendition in daylight
  • 1/3" Sony Super HAD CCDTM
  • Backfocus thumbwheel for optimum picture quality and ease of setup
  • High picture quality due to tailored digital signal processing settings and professional quality optical filters
  • Accepts C or CS lenses without the need for adapters
  • Compatible with all standard auto and manual iris lenses
  • Protection against lightning strikes/spikes on power and coax lines
  • Diecast zintec casing and cast zinc lens mount for superior build quality
  • Easy to install and configure with a streamlined range of configurable settings
  • Available in a selection of packages that include the 2010 external housing, lens, heater and 3m of coax and cables
Specification
  • Chip Inch Size: 1/3"
  • Colour Type: Colour / Monochrome
  • Resolution: 540 TVL
  • Digital (DSP): Yes
  • Auto Iris: Yes
  • Sensitivity: 0.1 lux
  • Direct Drive: Yes
  • Lens Mount: C/CS
  • Picture Elements HxV: 752 x 582
  • Back Light Compensation: Yes
  • Auto Gain Control: Yes
  • White Balance: Yes
  • Gamma Correction: 0.45
  • Electronic Shutter range: 1/50 ~ 1/100,000
  • S/ N (Signal/ Noise) Ratio: 50 dB
  • Synchronisation: Internal, Line-lock
  • Voltage: 12 VDC / 24 VAC
  • Power Consumption: 4.2 W
  • Dimension: 131mm x 63mm x 62mm
  • Operating Temperature: -10°C ~ +50°C
  • Operating Humidity: 20% ~ 80%
