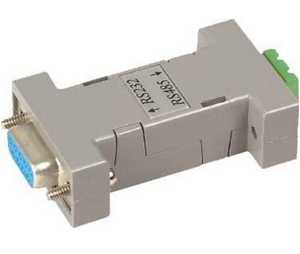

Compulan Center CID-IVRS001

Model: CID-IVMP1APANO

Description:

RS232 to RS485 converter. Allows CY Series DVRs to interface with PTZ and Zoom cameras.

Features:

• DB9 female connector for RS232 to 2 wires
• Terminal Block for RS485
• Two wire, differential signals, half duplex
• Non power operation
• Auto switching baud rate, speed up to 115,200 baud over a distance 1200 meters
• 32 units connected together in RS-485 multidrop operation
• Input: RS232
• Output:RS485
• Power Consumption: 10mA (max)
• Transmission Distance: 1200 meters
• Dimensions (W x H x D): 53x33x17mm
• Storage Temp: -30 °C ~ 70 °C
• Operation Temp: -10 °C ~ 45 °C
