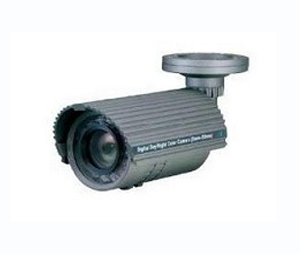

Compulan Center CID-IVBV50215

Model: IVBV50215

Features:

• 1/3" SONY Super HAD CCD
• Ultra High Resolution 600TV Lines
• True Day and Night (IR Removable Cut Filter)
• 5-50mm Auto Iris Varifocal Lens
• Hassle?Free External Lens Adjustment
• (Zoom/Focus, Near/Far)
• 15 Power Hybrid IR LED's (up to 300 ft IR Range)
• 3DNR - Superior Balanced Night Time Picture
• Auto White Balance (AWB)
• AGC / BLC / Flickerless
• Min Illumination Night(0.00Lux, IR LED On)
• Dual Power (12V DC/24V AC)

Specifications:

• Signal System: NTSC
• Scanning System: 21 Interlace
• Scanning Frequency (H):15.734 KHz
• Scanning Frequency (V): 59.94 Hz
• Image Sensor: 1/3" SONY Super HAD CCD
• Total Pixels: 811(H) x 508(V) 410K
• Total / Effective Pixels: 768(H) x 494(V) 380K
• Horizontal Resolution: 600 TV Lines
• Video Output: 1.0V p-p (75Ohm, Composite)
• S/N Ratio: More than 48dB(AGC Off)
• Lens: DC Auto-Iris Varifocal Lens (5 ? 50mm)
• Min.Illumination: 0.3 Lux (Color), 0 Lux (IR LED On)
• IR LED and Sensor: 15 Power Hybrid IR LED's (850nm, 30°)
• IR LED Visible Range: Up to 300ft
• Day and Night: True Day and Night (ICR)
• Digital Noise Reduction: 3DNR Auto
• White Balance: Auto
• AGC,BLC, Flickerless: On/Off
• Power: Dual Power (12V DC/24V AC)
• Dimensions (øxWxH): 140mm x 111mm x 140mm
