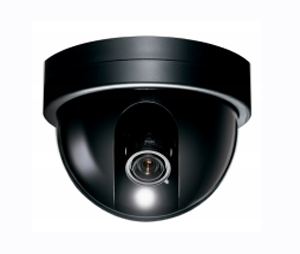

Clinton Electronics CLI-CEVFCD954

Model: CEVFCD954

Features:

• Indoor Day/Night Dome Camera
• 1/3" SONY Super HAD CCD
• 540 TVL Resolution
• 2.8 ~ 10.5mm (F1.2) Tamron Lens
• NX3 Digital Signal Processor (DSP)
• 3-Axis Adjustment
• 12VDC / 24VAC
• UL Listed

Specifications:

• Image Sensor: 1/3" SONY Super HAD II CCD
• Resolution: 540 TVL
• Effective Pixels: 768 (H) x 494 (V)
• Scanning System: 2:1 Interlace
• S/N Ratio: 50dB (AGC Off)
• Sync System: Internal
• Minimum Illumination: 0.15 Lux (Color)
• Shutter Speed: Auto / Manual (1/60 ~ 1/100,000)
• Lens: 2.8~10.5mm (F1.2) Tamron Lens
• Video Output: 1.0 Vp-p, 75O
• Frequency: Horizontal: 15.734 KHz, Vertical: 59.94 Hz
• Power Consumption: Max. 310mA (DC12V), Max. 150mA (AC24V)
• Power Requirement: 12VDC / 24VAC
• Operating Temperature: 32°F ~ 113°F / 0°C ~ 45°C
• Operating Humidity: 95% RH max
• Materials: Plastic Case w/Polycarbonate Dome
• Dimensions (D x H): 5.51" x 3.74" / 139.95mm x 94.99mm
• Weight: 3.30 lbs / 1,496.85g
• DSP Type: NX3
• Menu Control: OSD Menu Control via Built-In Button Pad
• Exposure: Shutter, Brightness, AGC
• White Balance: ATW1, AWC Set, Manual
• Digital Dynamic Range: Yes (DWDR)
• Backlight Control: BLC, HLC
• Day/Night: Auto, Color, B&W, External
• Noise Reduction: 2DNR
• Camera Title/ID: Yes (Up to 15 Characters)
• Monitor: LCD, CRT, User
• Motion Detection: 4 Areas
• Privacy Masking: 8 Zones
• Dead Pixel Control: Yes (Live DPC)
• Digital Effects: Mirror, Negative Image, Park Line, Lens Shading
• Languages: English, Chinese
• Other: Sharpness, Contrast, OSD Color, Smart IR
