Home > Electrified Hardware > Cameras > Day/Night Cameras > Clinton Electronics > Clinton Electronics CLI-CE20PVMDVR

Clinton Electronics CLI-CE20PVMDVR

Name: Clinton Electronics CLI-CE20PVMDVR 20" Public View with Built-In 4-Channel Cricket
Brand: Clinton Electronics
SKU: Clinton Electronics CLI-CE20PVMDVR
Price: 1586.45 USD

Clinton Electronics CLI-CE20PVMDVR 20" Public View with Built-In 4-Channel Cricket

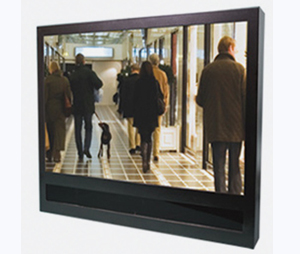

× This image is for a similar product but it will differ in size, color and/or other attributes.

Clinton Electronics CLI-CE20PVMDVR 20" Public View with Built-In 4-Channel Cricket

Price: $1,586.45 USD

Comments (Optional)

ADD TO CART

This item is not in stock and typically ships in 1 business day.

+ Add to My Wish List

1-844-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:

Clinton Electronics CLI-CE20PVMDVR 20" Public View with Built-In 4-Channel Cricket

Model: CE20PVMDVR

Features:

20" Public View Monitor with built-in DVR
540 TVL Camera with 2.9 ~ 10mm Lens
Built-In 4 Channel DVR
2-Axis Adjustment
Easy Access Camera Door
Tinted Camera Window
Vivid Display
BNC Loop Out
Low Voltage (DC24V)
Powder Coated One Piece Steel Housing
Easy to Setup and Install
Motion Detection to Full Screen
"Recording in Progress" or "Welcome" flashing or static text overlay selectable
Flashing LED Light Draws Attention to the PVM: ON/OFF Selectable
LCD and DVR Remote Controls included
Built-In Audio Alert: ON/OFF Selectable
Built-In Flash Card Player
USB Port to Export Video
Networkable for Remote Operation

Specifications:

Monitor:
- LCD Panel: 20" TFT LCD
- Resolution: 640 x 480
- LCD Profile Ratio: 4:3
- Display Colors: 16.7M (8 bit)
- Brightness: 500 nit
- Contrast Ratio: 800:1
- Viewing Angle: 178°
- Response Time: 12ms
- Bracket: VESA 100mm
- Video Output: BNC Loop Out
Camera:
- Image Sensor: 1/3" SONY Super HAD CCD
- Resolution: 540 TV Lines
- Effective Pixels: 768 (H) x 494 (V)
- Scanning System: 2:1 Interlace
- S/N Ratio: 50dB (AGC Off)
- Sync System: Internal / Line Lock
- Scanning Frequency: 15.734 KHz (H), 59.94 Hz (V)
- Minimum Illumination: 0.3 Lux / F1.2 (Color), 0.1 Lux / F1.2 (B&W)
- Shutter Speed: 1/60 ~ 1/100,000 sec.
- Dynamic Range: 62dB (Max.)
- Iris Control: DC / Video
- Lens: 2.8 ~ 10.5mm Vari-Focal / F1.2
- Video Output: 1.0 Vp-p, 75 O
- Camera OSD Menu:
- Lens: DC Video
- Shutter: ESC / Manual / FLK
- White Balance Control: ATW / AWC / Manual
- Back Light: Off / Low / Middle / High
- Gain Control: Off / Low / Middle / High
- Digital Noise Reduction: Off / Low / Middle / High
- Sens-Up: Off / Auto
- Special: Camera ID, Sync, Privacy, Sharpness, Color, Motion Detection, Mirror, Reset
DVR:
- Video Format: NTSC
- Video Compression: H.264
- Recording Frame Rate: 60 FPS Global / 15 FPS per Channel
- Recording Quality: 5 Levels
- Recording Resolution: 640 x 480
- Playback Options: Manual / Event List
- Recording Mode: Manual / Schedule / Motion Detection / Continuous
- Storage Media: 3.5" 500GB Hard Drive
- Power Consumption: 80 Watts
- Power Requirement: 24V DC
- Dimensions (W x H x D): 17.5" x 16.5" x 3.38"
- Weight: 20.3 lbs.
