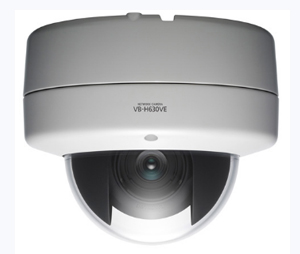

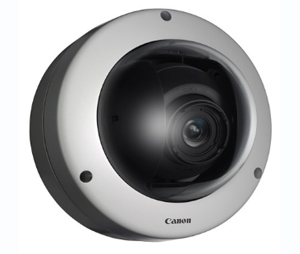

Model: VBH630VE
Specifications:
CAMERA
IMAGE SENSOR
1/3 type CMOS (primary color filter)
NUMBER OF EFFECTIVE PIXELS
Approx. 2.1 million pixels
SCANNING METHOD
Progressive
LENS
3x optical (4x digital) zoom lens (electric drive)
FOCAL LENGTH
2.8 (W) - 8.4mm (T)
F-NUMBER
F1.2 (W) - F2.0 (T)
HORIZONTAL VIEWING ANGLE
111.0° (W) - 36.5° (T)
VERTICAL VIEWING ANGLE
60.1° (W) - 20.5° (T)
DAY/NIGHT SWITCH
Auto/Manual
I/R CUT FILTER
Removable
MIN. SUBJECT ILLUMINATION - DAY (COLOR)
0.3 lux (F1.2, shutter speed 1/30 sec., SSC off , 50IRE)
0.02 lux (F1.2, shutter speed 1/2 sec., SSC off , 50IRE)
0.008 lux (F1.2, shutter speed 1/2 sec., SSC on, 50IRE)
MIN. SUBJECT ILLUMINATION - NIGHT (MONOCHROME)
0.015 lux (F1.2, shutter speed 1/30 sec., SSC off , 50IRE)
0.001 lux (F1.2, shutter speed 1/2 sec., SSC off , 50IRE)
0.0005 lux (F1.2, shutter speed 1/2 sec., SSC on, 50IRE)
FOCUS
One-shot AF/Manual/Fixed at infinity
SHOOTING DISTANCE
Day Mode: 0.3m (12 in.) - infinity
Night Mode: 1.0m (3.3 ft.) - infinity
SHUTTER SPEED
1, 1/2, 1/4, 1/8, 1/15, 1/30, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/16000 sec.
EXPOSURE
Auto/Auto (Flickerless)/Auto (Shutter-priority AE)/ Manual (Shutter Speed, Aperture, Gain)
WHITE BALANCE
Auto/Light Source (Daylight Fluorescent/White Fluorescent/Warm Fluorescent/Mercury Lamp/Sodium Lamp/Halogen Lamp)/Manual (One-shot WB, R Gain, B Gain)
METERING MODE
Center-Weighted/Average/Spot
EXPOSURE COMPENSATION
9 levels
SMART SHADE CONTROL
Auto / Manual / Disable
Auto: 3 Levels
Manual: 7 Levels
AGC LIMIT
5 levels
PAN ANGLE RANGE
350° (±;175°)
TILT ANGLE RANGE
150° (±;75°)
ROTATION ANGLE RANGE
350° (±;175°)
MOVING SPEED
Pan: 17.1°/sec., Tilt: 12.6°/sec., Rotation: 25.9°/sec.
- When the Camera Angle Setting Tool is used
SERVER
VIDEO COMPRESSION METHOD
JPEG, H.264
VIDEO SIZE
JPEG, H.264: 1920 x 1080, 960 x 540, 480 x 270 1280x720, 640x360, 320x180, 1280x960, 640x480, 320x240
VIDEO QUALITY
JPEG, H.264: 5 levels
FRAME RATE
JPEG: 0.1 - 30 fps
H.264: 1/2/3/5/6/10/15/30 fps
MAXIMUM FRAME RATE
1920 x 1080: 30 fps
I-FRAME INTERVAL
0.5/1/1.5/2/3/4/5 sec.
SIMULTANIOUS CLIENT ACCESS
Max. 30 Clients + 1 Admin Client - H.264: Max. 10 Clients
CAMERA CONTROL
Administrator, Authorized user, Guest user
Max. 50 user names and passwords registered for authorized users.
ACCESS CONTROL
User authority (user name and password), Host Access
Restrictions (IPv4,IPv6)
ENCRYPTED COMMUNICATIONS
SSL/TLS, IPsec (Auto Key Exchange/Manual)
IEEE 802.1X
EAP-MD5, EAP-TLS, EAP-TTLS, EAP-PEAP
ONVIF Version
ONVIF Ver. 2.2 / Profile S
IPv4 PROTOCOL
TCP/IP, UDP, HTTP, FTP, SNMP (MIB2), SMTP (Client), DHCP (Client), DNS (Client), ARP, ICMP, POP3, NTP, SMTP authentication, RTSP, WV-HTTP (Canon proprietary), ONVIF
IPv6 PROTOCOL
TCP/IP, UDP, HTTP, FTP, SMTP (Client), DHCPv6 (Client), DNS (Client),ICMPv6, POP3, NTP, SMTP authentication, RTSP, WV-HTTP (Canon proprietary), ONVIF
AUTO IP
Available
AUDIO COMPRESSION METHOD
G.711 µ-law (64 kbps)
AUDIO COMMUNICATION METHOD
Full-duplex (two-way) - Echo cancellation function compliant
AUDIO FILE PLAYBACK
Available (audio files can be played back when an event is triggered by the intelligent function or external device input.)
PRIVACY MASK
Number of registration: Max. 8 places
Number of mask colors: 1 (select from 9 colors)
PRESETS
Max. 20 positions (Digital)
INTELLIGENT FUNCTION - VIDEO
moving object detection, abandoned object detection, removed object detection, camera tampering detection, and passing detection
INTELLIGENT FUNCTION - DETECTION SETTINGS
Max. 15
INTELLIGENT FUNCTION - VOLUME
Volume Detection
EVENT TRIGGER TYPE
External Device Input, Intelligent Function (Video), Intelligent Function (Volume), Timer
IMAGE UPLOAD
FTP/HTTP/SMTP (e-mail)
Temporary storage memory in camera: Max. approx. 5 MB
Frame Rate: Max. 10 fps (JPEG)
Max. 30 fps (H.264)
EVENT NOTIFICATION
HTTP/SMTP (e-mail)
ON-SCREEN DISPLAY
Available
IMAGE CROPPING FUNCTION
Digital PTZ
Cropping sizes: 640 x 360/512 x 288/384 x 216/256 x 144/128 x 72/640 x 480/512 x 384/384 x 288/256 x 192/128 x 962
DAYLIGHT SAVING TIME
Available
INTERFACE
NETWORK TERMINAL
LAN x 1 (RJ45, 100Base-TX (auto/full-duplex/half-duplex))
AUDIO INPUT TERMINAL
F3.5mm (F0.14 in.) mini-jack connector (monaural)
- Connect via an audio interface cable (included)
Switch LINE IN/MIC IN in the setting page.
LINE IN x 1 (connect to an amplifier microphone) or
MIC IN x 1 (connect to a microphone w/o amplifier)
AUDIO OUTPUT TERMINAL
F3.5mm (F0.14 in.) mini-jack connector (monaural)
- Connect via an audio interface cable (included)
LINE OUT x 1 (connect to an amplifier speaker)
EXTERNAL DEVICE I/O TERMINAL
Input x 2, Output x 2
MEMORY CARD
SD Memory Card, SDHC Memory Card, SDXC Memory Card Compatible.
Frame Rate: Max. 1 fps (JPEG), Max. 30fps (H.264)
OPERATING ENVIRONMENT
TEMPERATURE
Temperature: -10°C - +50°C (+14°F - +122°F)
HUMIDITY
Humidity: 5% - 85% (without condensation)
POWER SUPPLY
PoE
PoE power supply via LAN connector (IEEE802.3af compliant)
AC ADAPTER
PA-V17 or PA-V18(100 - 240 V AC) (sold separately)
EXTERNAL POWER SOURCE
24 V AC/12 V DC
- Heater Unit HU600-VB (sold separately): 24 V AC only
POWER CONSUMPTION
WITH PoE
Max. approx. 8.4 W
WITH AC ADAPTER
PA-V17: Max. approx. 10.6W (100 VAC)
PA-V17: Max. approx. 10.8 (240 VAC)
PA-V18 Max. approx. 9.9W (100 VAC)
PA-V18: Max. approx. 10.3W (240 VAC)
WITH 12VDC
Max. approx. 9.0 W
WITH 24VAC
Max. approx. 8.1 W
Max. approx.18.7 W
OTHER
DIMENSIONS
(F x H) F180 x 147mm (F 7.09 x 5.79")
MOUNTING POSITION
Horizontal / Vertical
HEATER
Optional
WEIGHT
Approx. 1910 g (4.211 lb.)
OUTDOOR READY
Yes
IP RATING
IP66-rated (IEC60529)
VANDAL RESISTANT
Yes
IMPACT RESISTANCE
IK 10+ (50 Joules) |
