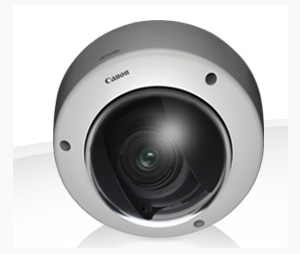

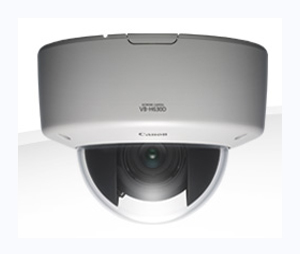

Model: VBH630D
Specifications:
CAMERA
Image Sensor
1/3 type CMOS (primary color filter)
Number of Effective Pixels
Approx. 2.1 million pixels
Scanning Method
Progressive
Lens
3x optical (4x digital zoom) zoom lens (electric drive)
Focal Length
2.8 (W) - 8.4 mm (T)
(W): maximum wide angle, (T): maximum telephoto
F-number
F1.2 (W) - F2.0 (T)
Viewing Angle
For 16:9 aspect ratios
Horizontal: 111.0° (W) - 36.5° (T)
Vertical: 60.1° (W) - 20.5° (T)
For 4:3 aspect ratios
Horizontal: 81.2° (W) - 27.3° (T)
Vertical: 60.1° (W) - 20.5° (T)
Day/Night Switch
Auto/Day Mode/Night Mode
Min. Subject Illumination
Day Mode (color):
0.3 lux (F1.2, shutter speed 1/30 sec., when smart shade control is off, 50IRE)
0.02 lux (F1.2, shutter speed 1/2 sec., when smart shade control is off, 50IRE)
0.008 lux (F1.2, shutter speed 1/2 sec., when smart shade control is on, 50IRE)
Night Mode (monochrome):
0.015 lux (F1.2, shutter speed 1/30 sec., when smart shade control is off, 50IRE)
0.001 lux (F1.2, shutter speed 1/2 sec., when smart shade control is off, 50IRE)
0.0005 lux (F1.2, shutter speed 1/2 sec., when smart shade control is on, 50IRE)
Focus
One-shot AF/Manual/Fixed at infinity
Shooting Distance (from front of lens)
Day Mode: 0.3 m (12 in.) - infinity
Night Mode: 1.0 m (3.3 ft.) - infinity
Shutter Speed
1, 1/2, 1/4, 1/8, 1/15, 1/30, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000, 1/16000 sec.
Exposure
Auto/Auto (Flickerless)/Auto (Shutter-priority AE)/Manual (Shutter Speed, Aperture, Gain)
White Balance
Auto/Light Source (Daylight Fluorescent/White Fluorescent/Warm Fluorescent/Mercury Lamp/Sodium Lamp/Halogen Lamp)/Manual (One-shot WB/R Gain/B Gain)
Metering Mode
Center-Weighted/Average/Spot
Exposure Compensation
9 levels
Smart Shade Control
Auto/Manual/Disable
Auto: 3 levels
Manual: 7 levels
Haze Compensation
Auto/Manual/Disable
Auto: 3 levels
Manual: 7 levels
AGC Limit
5 levels
Image Stabilizer
-
Pan Angle Range
350° (±;175°)
Tilt Angle Range
150° (±;75°)
Rotation Angle Range
350° (±;175°)
Moving Speed
Pan: 17.1°/sec., Tilt: 12.6°/sec., Rotation: 25.9°/sec.
- When the Camera Angle Setting Tool is used
SERVER
Video Compression Method
JPEG, H.264
Video Size
JPEG, H.264:
1920 x 1080, 960 x 540, 480 x 270
1280 x 720, 640 x 360, 320 x 180
1280 x 960, 640 x 480, 320 x 240
Video Quality
JPEG, H.264: 5 levels
Frame Rate
JPEG: 0.1 - 30 fps
H.264: 1/2/3/5/6/10/15/30 fps
- Values represent streaming performance from the camera.
- The frame rate may be reduced due to Viewer PC's specs, the number of clients accessing at the same time, network loads, video quality setting, type or movement of the subject or other reasons.
Max. Frame Rate
When streaming JPEG, H.264 (1920 x 1080): 30 fps
When used in the following combinations:
When streaming H.264(1) (1920 x 1080) and H.264(2) (all sizes) simultaneously: 15 fps
When streaming H.264(1) (all sizes) and H.264(2) (1920 x 1080) simultaneously: 15 fps
When streaming H.264(1) (1280 x 960) and H.264(2) (1280 x 960) simultaneously: 15 fps
When streaming H.264(1) (1280 x 720) and H.264(2) (1280 x 720) simultaneously: 15 fps
I-Frame Interval
0.5/1/1.5/2/3/4/5 sec.
Simultaneous Client Access
Max. 30 Clients + 1 Admin Client
- H.264: Max. 10 Clients
Camera Control
Administrator, Authorized user, Guest user (level of control varies depending on user)
Max. 50 user names and passwords registered for authorized users.
Access Control
User authority (user name and password), Host Access Restrictions (IPv4, IPv6)
Encrypted Communications
SSL/TLS, IPsec (Auto Key Exchange/Manual)
IEEE 802.1X
EAP-MD5, EAP-TLS, EAP-TTLS, EAP-PEAP
Protocol
IPv4: TCP/IP, UDP, HTTP, FTP, SNMPv1/v2c/v3 (MIB2), SMTP (Client), DHCP (Client), DNS (Client), mDNS, ARP, ICMP, POP3, NTP, SMTP authentication, RTSP, WV-HTTP (Canon proprietary), ONVIF
IPv6: TCP/IP, UDP, HTTP, FTP, SMTP (Client), DHCPv6 (Client), DNS (Client), mDNS, ICMPv6, POP3, NTP, SMTP authentication, RTSP, WV-HTTP (Canon proprietary), ONVIF
AutoIP
Available
Audio Compression Method
G.711 µ-law (64 kbps)
Audio Communication Method
Full-duplex (two-way) - Echo cancellation function compliant
Sound Transfer Protocol by Canon
Audio File Playback
Available (audio files can be played back when an event is triggered by the intelligent function or external device input.)
- Requires third-party amplifier and speaker
Privacy Mask
Number of registration: Max. 8 places, Number of mask colors: 1 (select from 9 colors)
View Restriction
-
Preset
Max. 20 positions
Intelligent Function
Video:
Detection Types: moving object detection, abandoned object detection, removed object detection, camera tampering detection, and passing detection
Detection Settings: Max. 15
Volume:
Volume Detection
Event Trigger Type
External Device Input, Intelligent Function (Video), Intelligent Function (Volume), Timer
Image Upload
FTP/HTTP/SMTP (e-mail)
Temporary storage memory in camera: Max. approx. 5 MB
Frame Rate:
Max. 10 fps (JPEG)
Max. 30 fps (H.264)
Event Notification
HTTP/SMTP (e-mail)
Image Cropping Function
Digital PTZ
Cropping sizes:
640 x 360/512 x 288/384 x 216/256 x 144/128 x 72
640 x 480/512 x 384/384 x 288/256 x 192/128 x 96
On-Screen Display
Available
Daylight Saving Time
Available
Custom Settings
Number of registers: 4
Items to Reg.: Exposure, Smart Shade Control, Haze Compensation, Focus, White Balance, Image Quality Adjustment, Day/Night
APPLICATION
Viewer
Camera-side:
Admin Viewer
VB Viewer
Admin Tools
Privacy Mask Setting Tool
Preset Setting Tool
Intelligent Function Setting Tool
Log Viewer
Recorded Video Utility
Included Software
Camera Management Tool
RM-Lite
Proxy Authentication Admin Tools/Admin Viewer
Camera Angle Setting Tool
Language
German/English/Spanish/French/Italian/Russian/Turkish/Chinese (Simplified)/Japanese
INTERFACE
Network Terminal
LAN x 1 (RJ45, 100Base-TX (auto/full-duplex/half-duplex))
Audio Input Terminal
(common for LINE IN and MIC IN)
ø3.5 mm (ø0.14 in.) mini-jack connector (monaural)
- Connect via an audio interface cable (included)
Switch LINE IN/MIC IN in the setting page.
LINE IN x 1 (connect to an amplifier microphone) or MIC IN x 1 (connect to a microphone w/o amplifier)
Audio Output Terminal (LINE OUT)
ø3.5 mm (ø0.14 in.) mini-jack connector (monaural)
- Connect via an audio interface cable (included)
LINE OUT x 1 (connect to an amplifier speaker)
External Device I/O Terminal
Input x 2, Output x 2
Memory Card
SD Memory Card, SDHC Memory Card, SDXC Memory Card Compatible.
Frame Rate:
Max. 1 fps (JPEG)
Max. 30 fps (H.264)
OTHER
Operating Environment
Temperature: -10°C - +50°C (+14°F - +122°F)
Humidity: 5% - 85% (without condensation)
Power Supply
PoE: PoE power supply via LAN connector (IEEE802.3af compliant)
AC Adapter: PA-V17 or PA-V18 (100 - 240 V AC) (sold separately)
External power source: 24 V AC/12 V DC
Power Consumption
When using PoE: Max. approx. 7.8 W*
When using AC Adapter PA-V17:
Max. approx. 9.8 W (100 V AC)
Max. approx. 10.2 W (240 V AC)
When using AC Adapter PA-V18:
Max. approx. 9.4 W (100 V AC)
Max. approx. 9.2 W (240 V AC)
When using DC: Max. approx. 8.3 W
When using AC: Max. approx. 7.5 W
* Class 0 power sourcing equipment (requests 15.4 W)
Dimensions
(ø x H) ø186 x 140 mm (ø7.32 x 5.51 in.)
Weight
Approx. 1190 g (2.63 lb.) |
