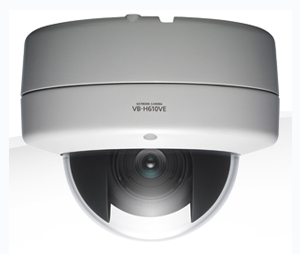

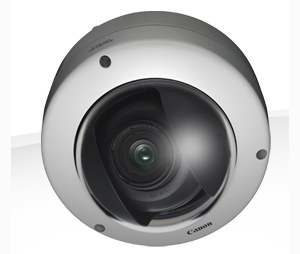

Model: VBH610VE
Specifications:
- Image Sensor:
- Type: 1/3" CMOS with primary colour filter
- Number of Pixels: Approx. 2.1 million pixels
- Scanning System: Progressive
- Optics:
- Zoom Magnification and Control: 3x powered zoom lens with Auto Focus
- Focal Length: 2.8mm (wide) - 8.4mm (telephoto)
- Horizontal Field of View: 111.0° (wide) - 36.5° (telephoto)
- Lens F-Number: F1.2 - F2.0
- Minimum Subject Illumination:
- Day Mode: 0.3 lux (Colour, F1.2 at 1/30 sec, SSC off, 50IRE)
- Night Mode: 0.015 lux (Mono, F1.2 at 1/30 sec, SSC off, 50IRE)
- Focus Control: One-shot AF / Manual / Fixed at infinity
- Focusing Region:
- Day Mode: 0.3 m - infinity
- Night Mode: 1.0 m - infinity
- Shutter Speed: 1, 1/2, 1/4, 1/8, 1/15, 1/30, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000 and 1/16000sec
- White Balance: Auto / Light Source (Daylight Fluorescent / White Fluorescent / Warm Fluorescent / Mercury Lamp / Sodium Lamp / Halogen Lamp) / Lock (One-shot WB) / Manual
- Imaging Modes: Day Mode, Night Mode (Auto / Manual)
- Metering Modes: 3 options: Centre-weighted / Average / Spot Metering
- Exposure: Auto/Auto (Flickerless)/Auto (Shutter-priority AE)/Manual (Shutter Speed, Aperture, Gain)
- Exposure Compensation: 9 levels
- Shade Correction: Canon Smart Shade Control (SSC) with 7 levels
- AGC Limit: 5 levels
- Image Stabilizer: -
- Server Unit:
- Video Compression Method: H.264, JPEG
- Video Output Size:
- JPEG: 1920 x 1080, 960 x 540, 480 x 270, 320 x 240
- H.264: 1920 x 1080, 960 x 540, 480 x 270
- Frame Rate:
- JPEG: 30 - 0.1 fps
- H.264: 30/15/10/6/5/3/2/1 fps
- I-Frame Interval: 0.5/1/1.5/2/3/4/5 sec.
- Simultaneous Distribution:
- JPEG: Max. 30 Clients + 1 Admin Client
- H.264: Max. 10 Clients
- Audio Communication: Full-duplex
- Audio Compression Method: G.711 µ-law (64 kbps)
- Supported Protocols:
- IPv4: TCP/IP, UDP, HTTP, FTP, SNMP (MIB2), SMTP (Client), DHCP (Client), DNS (Client), ARP, ICMP, POP3, NTP, SMTP authentication, RTSP, WV-HTTP (Canon), ONVIF
- IPv6: TCP/IP, UDP, HTTP, FTP, SMTP (Client), DNS (Client), ICMPv6, POP3, NTP, SMTP authentication, RTSP WV-HTTP (Canon), ONVIF
- AutoIP: Supported
- Encrypted Communications: SSL/TLS, IPsec (Auto Key Exchange/Manual)
- Privacy Mask: Max. 8 masks. Number of mask colours: 1 (select from 9 colours)
- Camera Access Control: User name and password / Host-based access control (IPv4, IPv6)
- Camera Access Levels: 3 user levels: Administrator / Authorized User / Guest User
- Event Notification: HTTP/SMTP (e-mail)
- Embedded Analitycs:
- Video Content Analytics: Moving Object Detection, Abandoned Object Detection, Removed Object Detection, Camera Tampering Detection and Passing Detection (Max of 15 detections per camera)
- Audio: Volume Detection
- Connectors:
- Network Interface: RJ-45, 100Base-TX (Auto / Full duplex / Half duplex)
- Audio Input (Mic In / Line In): 3.5mm mono mini-jack
- Audio Output (Line Out): 3.5mm mono mini-jack
- External Device I/O Terminals: 2 x Inputs / 2 x Outputs
- Memory Card: SD, SDHC and SDXC Memory Card Compatible
- Mechanisms:
- Pan Angle Range: 350° (±;175°)
- Tilt Angle Range: 150º (±;75º)
- Rotation Angle Range: 350° (±;175°)
- Maximum Rotation Speed: Pan: 19.2º/sec, Tilt: 14.2º/sec, Rotation: 43.7º/sec
- Infrared Cut Filter: Power-driven insertion and removal (Day / Night Modes)
- Preset Positions: -
- Ratings:
- Dimensions (W x H x D): 180mm x 147mm x 180mm
- Weight: Approx. 1920 g
- Power Sources:
- Power over Ethernet (48V DC, Conforms to IEEE 802.3af)
- 100V - 240V AC, 50/60Hz (via optional AC Adaptor PA-V17)
- 12V DC or 24V AC (via supplied two-pin connector)
- Power Consumption:
- PoE Input: Max. approx. 8.4 W
- AC adapter (PA-V17): Max. approx. 10.72 W
- DC Input: Max. approx. 9.0 W
- AC Input: Max. approx. 8.1 W
- Max. approx. 18.7 W equipped with optional heating unit (HU600-VB)
- Operating Environment:
- Temperature: -10°C to 50°C, Humidity: 5% - 85% RH (without condensation)
- Temperature: -30°C to 50°C, Humidity: 5% - 85% RH (without condensation)
- Impact Resistance:
- External materials: Aluminium alloy / Dome: poly carbonate plastics / Lens: shock absorbing mechanism
- Estimated shock resistant: 50J (impact strength)
- Dust-resistant/Waterproof Specification: IP66-rated
|
