CBC Americas Corp. CHU-FC62D

Name: CBC Americas Corp. CHU-FC62D 1/3" Standard Resolution Black/White Camera
Brand: CBC Americas Corp.
SKU: CBC Americas Corp. CHU-FC62D
Price: 114.91 USD

CBC Americas Corp. CHU-FC62D 1/3" Standard Resolution Black/White Camera

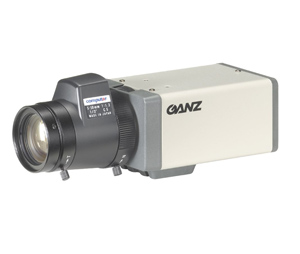

× This image is for a similar product but it will differ in size, color and/or other attributes.

CBC Americas Corp. CHU-FC62D 1/3" Standard Resolution Black/White Camera

Price: $114.91 USD

Comments (Optional)

ADD TO CART

This item is not in stock and typically ships in 1 business day.

+ Add to My Wish List

1-844-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:

CBC Americas Corp. CHU-FC62D 1/3" Standard Resolution Black/White Camera

Features:

Code: FC62D
Resolution: 380 Lines (Horizontal)
TV System: EIA
Synchronization System: Internal or Linelock (Manual Switch)
Image Sensor: 1/3” CCD Interline
Effective Elements (H x V): 510 x 492
Image Output: 1.0V p-p/75 Ohms
S/N Ratio: More than 50dB
Minimum Illumination: 0.09 Lux at F1.2 /50 IRE; 0.04 Lux at F0.8/50 IRE
Gamma Characteristics: 0.45
Auto Electronic Shutter: 1/60 Fixed or 1/60 - 100000 Sec Linear
Lens Mount: CS-Mount
Iris Control: Video iris: Power/12VDC min, Less than 50mA, Video Signal 0.7Vp-p (High Impedance), DC Iris: Shutter Speed 1/60 Sec Fixed, AES: 1/60 - 100000 Sec Linear Shutter
Power Supply: AC24V ± 10% (60Hz ± 1%) or DC12V ± 10%
Weight: 300g
External Dimensions (W x H x D): 2.36" x 1.81" x 3.74” (60mm x 46mm x 95mm)
