Manufacturer: Bosch
Model: KBE832V3820N
Product Type: Day/Night HD Outdoor Camera Kit
Description:

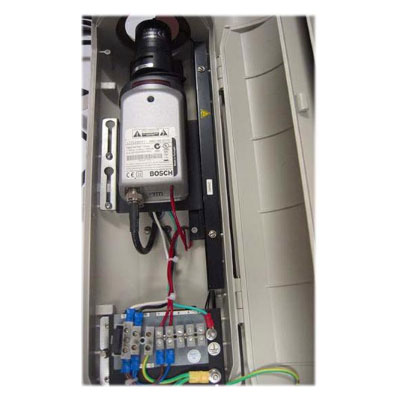

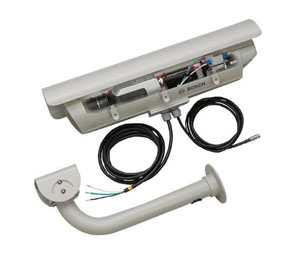

The Bosch KBE-832V38-20N DinionHD Day/Night Outdoor Camera Kit includes an IP66-rated DinionHD 1080p Day/Night Outdoor camera, VLG-3V3813-MP varifocal lens (with adjusted back-focus), an LTC 9215/00 indoor/outdoor feed-through mount, and a 5' (1.5 m) power cable pre-wired into the housing. The kit is quick and easy to install, thanks to plug-and-play operation.
With a 1/2.7" CMOS HD sensor, the DinionHD Day/ Night IP camera captures DVD-like, high-quality MPEG-4 videos at up to 30 images per second. It is ONVIF-compliant, which means it can exchange live video, audio, metadata, and control information with other ONVIF-compliant devices. It uses H.264 (main profile) compression, bandwidth throttling, and multicasting capabilities to manage bandwidth and storage requirements efficiently, while delivering high image quality and resolution. It also features the Motion+ video motion analysis system that is based on pixel change, and includes object size filtering capabilities and sophisticated tamper-detection capabilities.
The VLG-3V3813-MP is a varifocal lens (3.8 to 13mm) with 3 MP resolution and 1/2.7" image format. The DC-iris control connection is a 4-pin standard plug that fits directly into the camera's iris output. This lens delivers impressive optical quality due to its high recording resolution, contrast reproduction, and coating. The mechanical construction is designed to withstand both frequent DC-iris control operations and the environmental stress of security installations.
The LTC 9215/00 Outdoor Mount is designed for fixed camera or camera housing installations with a load rating of up to 9 kg (19.8 lb). It is made of lightweight aluminum, and features welded construction. In addition, the versatile swivel head rotates 360° and tilts 180° for excellent flexibility. The tubular feed-through design provides cable management from mounting head to mounting surface.
Features:
- Camera Kit:
- Camera and lens pre-wired into a Bosch housing that includes a feed-through mount and 5' (1.5 m) of cabling (plug-and-play design)
- 3 MP resolution for HD 1080p image quality
- ONVIF conformant
- Varifocal Lens Features:
- Megapixel optical resolution)
- High-quality optics 1/2" format
- Reliable, robust construction
- Mount Features:
- Feed-through design for cable management
- Maximum Load: 9 kg (20 lb
- 360° rotation, 180° tilt
- Versatile design
- Adjustable mount heads
Specification:
- Camera:
- Sensor: 1/2.7" CMOS
- Monochrome: 0.22 Lux (0.022 fc)/+ SensUP 10x: 0.05 Lux (0.005 fc)
- Picture Elements: H x V: 1920 x 1080
- Local Storage: microSD Card Slot
- Storage Temperature: -22 °F to 158 °F (-30 °C to 70 °C)
- Operating Temperature: -40 °F to 131 °F (40 °C to 55 °C)
- Operating Humidity: 20% to 93% Relative (Non-condensing)
- Dimensions (HxWxL): 2.89" x 2" x 18.89" (73.6mm x 50.8mm x 480 mm)
- Weight: 9.04 lb (4.1 kg)
- Lens:
- Maximum Sensor Format: 1/2"
- Optical Resolution: 3 MP
- Focal Length: 3.8 to 13 mm
- Iris Range: F1.4 to Close
- Minimum Object Distance (M.O.D.): 1' (0.3 m)
- Back Focus Distance: 0.41" (10.6 mm)
- Lens Mount: C
- Angle of View (HxV) Wide: 97 ° x 72 °
- Tele: 28 ° x 21 °
- Iris Control: 4-pin, DC Control
- Focus/Zoom: Manual
- Operating Temperature: 14 °F to 122 °F (-10 °C to 5 °C)
- Storage Temperature: -40 °F to 158 °F (-40 °C to 70 °C)
- Operating Humidity: Up to 93% Non-condensing
- Certification: CE
- Dimensions: 1.79" x 2.52" (45.7 mm x 64.2 mm)
- Weight: 0.18 lb (80 g)
- Mount:
- Maximum Load: 9 kg (19.8 lb)
- Mounting Head Adjustable: 360 ° pan, 180 ° tilt
- Dimensions (HxD): 5.45" x 12.08" (138.3 mm x 306.8 mm)
- Weight Approximately: 0.4 kg (0.9 lb)
|
