Bosch BOS-DIP70424HD
Bosch BOS-DIP70424HD

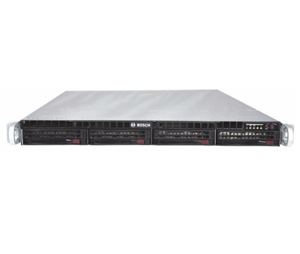

Bosch BOS-DIP70424HD Rack-Mountable Network Video Recorder with Four 2TB HDD
×
This image is for a similar product but it will differ in size, color and/or other attributes.
×
This product review video is for a similar product but it will differ in size, color and/or other attributes.
Price:
$
9,408.75 USD
In Stock Ready for Shipment
Comments
(Optional)
ADD TO CART
This item is not in stock and typically ships in 1 business day.
Check Inventory
Request Quote
No Minimum
There is no minimum quantity required for this product for quantities up to the level listed below.
Minimum Order Levels Apply
This item has minimum order levels that need to be met.
Check Inventory Levels
Enter your email address and we will check with all available sources and get back to you with exact inventory levels and estimated shipping times.
Qty. Needed:
Request Quote
Enter the qty needed and we will generate a quote and save your order in our system.
You will not be charged and we will not fulfill the order.
Qty. Needed:
+ Add to My Wish List
1-844-809-3667
Sales
sales@absupply.net
Technical Support
tech@absupply.net
Product Description:
Bosch BOS-DIP70424HD Rack-Mountable Network Video Recorder with Four 2TB HDD
Model:
BOS-DIP70424HD
Features:
Processor:
Type: Intel Xeon Quad Core X3430 (2.4 GHz, 95 W)
Socket: 1
Cache Memory: 1 x 8 MB Level 2 cache
Bandwidth: 150 Mb/s
Supported Modules: 32+ BVIP modules
Memory:
Protection: ECC unbuffered
Bus: Maximum Front Side Bus: 1,333 MHz
Memory Storage: 4 GB, DDR3-1333 ECC UNB (2 x 2 GB)
Storage:
Type: 4 Trays: 3.5" SATA
Hard Drive: 8 TB, 4 x 2 TB SATA3 7,200 rpm 3.5" 32 MB cache
RAID Support: RAID5
Capacity:
Gross: 4 x 2 TB
Net: 7300 GB
Graphics Card: AMD FirePro V3900 1 GB, low profile
DVD Writer: Internal
System Status DIVAR IP 7000 family comes fully loaded and fully functional with Microsoft Operating System and Bosch application pre-installed: WSS 2008 R2, 64-bit; Bosch Video Management System; Bosch Video Recording Manager including Video Streaming Gateway; Dynamic Transcoding.
ONVIF: Event-based recording is not supported
Audio on some third-party cameras is not fully supported, which may result in non-availability of audio streams
TCP is not supported for ONVIF cameras but with UDP protocol only
Motion JPEG is not supported
VCA is always recorded for Bosch devices
VCA is not available for ONVIF cameras
Certification: CE (Europe) and UL (USA)
Electrical:
Power Supply: 700 W Gold Level redundant
Electrical Input:
120 VAC Input
Actual Output Wattage from Power Supply: 202.72 W
Efficiency of Power Supply: 88% Power Consumption without Hard Drives: 230.37 W
Total BTU/h: 786.24
Power Factor: 0.95
System AC Input VA Requirement: 242.49 VA
240 VAC Input
Actual Output Wattage from Power Supply: 256.44 W
Efficiency of Power Supply: 90% Power Consumption without Hard Drives: 225.25 W
Total BTU/h: 768.77
Power Factor: 0.92
System AC Input VA Requirement: 244.83 VA
Mechanical:
Form Factor: 1HU rack mountable
USB Ports: 4 USB 2.0: 2 at the rear, 2 on the front (1 Type-A on-board)
Network: Dual Intel 82574L Gigabit LAN
Environmental:
Operating Temperature: +50 to +95°F (+10 to +35°C)
Non-Operating Temperature: -40 to +158°F (-40 to +70°C)
Operating Relative Humidity: 8 to 90% (non-condensing)
Non-operating Relative Humidity: 5 to 95% (non-condensing)
General:
Dimensions (H x W x D): 1.75 x 17.20 x 25.51" (44.50 x 437.00 x 648.00 mm)
Weight: 36.0 lb (16.3 kg)
