Bosch BOS-UPHC498NL86154
Bosch BOS-UPHC498NL86154

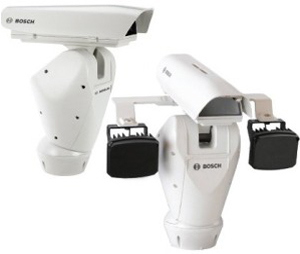

Bosch BOS-UPHC498NL86154 High Quality Camera and Lens Assembly
×
This image is for a similar product but it will differ in size, color and/or other attributes.
×
This product review video is for a similar product but it will differ in size, color and/or other attributes.
Price:
$
4,047.31 USD
In Stock Ready for Shipment
Comments
(Optional)
ADD TO CART
This item is not in stock and typically ships in 1 business day.
Check Inventory
Request Quote
No Minimum
There is no minimum quantity required for this product for quantities up to the level listed below.
Minimum Order Levels Apply
This item has minimum order levels that need to be met.
Check Inventory Levels
Enter your email address and we will check with all available sources and get back to you with exact inventory levels and estimated shipping times.
Qty. Needed:
Request Quote
Enter the qty needed and we will generate a quote and save your order in our system.
You will not be charged and we will not fulfill the order.
Qty. Needed:
+ Add to My Wish List
1-844-809-3667
Sales
sales@absupply.net
Technical Support
tech@absupply.net
Product Description:
Bosch BOS-UPHC498NL86154 High Quality Camera and Lens Assembly
Model: UPHC498NL86154
Features:
Pans up to 100° per second, 360° continuous rotation
Tilts up to 40° per second, -90° to +40° range
Choice of DinionXF Color or Dinion 2X Day/Night cameras and motorized zoom lens combinations
IP 66 rated, tough, attractive casing with up to 20 kg balanced load
Optional Bosch AEGIS UFLED Infrared Illuminator assembly attaches directly to the High-Speed Positioning System for operation in dark environments
Multi-protocol including Biphase, Bilinx, Pelco-D, and third party protocols on RS-485
Specifications:
Color: Light grey (RAL 7035)
Material: Die cast and extruded aluminum, ABS
Horizontal: 360° continuous
Vertical: -90° to +40°
Input Voltage: 24 VAC
Input Frequency: 50/60 Hz
Camera Input: 12 VDC, 800 mA
Lens Input: +6 to +15 VDC, 200 mA
Operating Temperature: -20 °C to +50 °C (-4 °F to +122 °F)
Storage Temperature: -20 °C to +60 °C (-4 °F to +140 °F)
Humidity: <90% relative humidity (non-condensing)
Enclosure Protection: IP 66
Dimensions: (H x W x D): 584mm x 258mm x 514mm (23.0" x 10.2" x 20.2")
Specification Sheet
