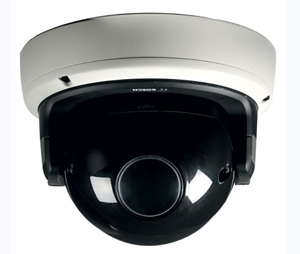

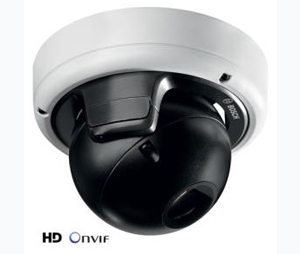

Model: NDN832V03IP
Features:
- High-impact, ruggedized enclosure with choice of lens
- Built-in Intelligent Video Analytics to trigger relevant alerts and quickly retrieve data
- Intelligent Dynamic Noise Reduction reduces bandwidth and storage requirements by up to 50%
- Auto back focus for fast installation
- Content-based scene analysis optimizes the image processing
Specifications:
- Sensor:
- Type: 1/2.7" CMOS sensor
- Active Pixels: 1920 x 1080
- Video:
- Video Compression: H.264 (ISO/IEC 14496-10); M- JPEG, JPEG
- Streaming: 4 individually configurable streams in H.264 and M-JPEG, configurable frame rate and bandwidth
- Dual Streaming: Stream 1 - H.264 main profile 1080p 25/30, H.264 main profile 720p 25/30 orH.264 MP standard definition; Stream 2 - Copy of stream 1 (when 1080p), H.264 Main Profile (MP) 720p 25/30, (when stream 1 is 720p) or H.264 MP standard definition ; 2 additional streams - M-JPEG stream and High Definition (HD) I-frame only stream
- Resolution: HD; 1080p: 1920 x 1080; 720p: 1280 x 720; 480p - Encoding: 704 x 480, Displayed: 854 x 480; 240p - Encoding: 352 x 240, Displayed: 432 x 240
- Overall IP Delay: minimum 120 ms, maximum 240 ms
- GOP Structure: IP, IBP, IBBP
- Sensitivity: 3200 K, scene reflectivity 89%, F1.2
- Minimum Illumination: 30 IRE, Color: 0.22 lx (0.022 fc)
- Monochrome: 30 IRE, 0.05 lx (0.005 fc)
- Day/Night: Color, Mono, Auto
- White Balance: ATW (2500 to 10000 K), ATW hold and manual
- Shutter: Auto (1/50 (1/60) to 1/150000) automatic fixed selectable
- Backlight Compensation: On / Off
- Contrast Enhancement: On / Off
- Sharpness: Sharpness enhancement level selectable
- Dynamic Range: Digital WDR: 76 dB
- Privacy Masking: 4 independent areas, fully programmable
- Video Motion Analysis: IVA
- Audio:
- Standard: G.711, 8 kHz sampling rate AAC
- Signal-to-Noise Ratio: >50 dB
- Audio Streaming: Full duplex / half duplex
- Input/Output;
- Audio: 1 x mono line in, 1 x mono line out, connector : 3.5 mm stereo jack, signal line in : 12 kO typical, 1 Vrms max, signal line out : 1 Vrms at 1.5 kO typical
- Alarm: 2 inputs, activation voltage : +5 to +40 VDC (+3.3 VDC with DC-coupled 22 kO pull-up resistor)
- Relays: 1 output, voltage : 30 VAC or +40 VDC, Maximum 0.5 A continuous, 10 VA
- Data Port: RS-232 / 422 / 485
- Local Storage:
- Memory Card Slot: Supports SDHC and SDXC microSD cards up to 2 TB
- Recording: Continuous recording, ring recording, alarm / events / schedule recording
- Software Controls
- Unit Configuration: via web browser or configuration manager
- Software Update: Flash ROM, remote programmable
- Network:
- Protocols: RTP, RTSP, Telnet, UDP, TCP, IP, HTTP, HTTPS, FTP, DHCP, IGMP V2/V3, ICMP, ARP,SMTP, SNTP, SNMP, 802.1x, UPnP
- Encryption: TLS 1.0, SSL, AES (optional)
- Ethernet: STP, 10/100 Base-T, auto-sensing, half/full duplex, RJ45
- PoE: IEEE 802.3at compliant
- Optical:
- Focal Length: 3.8 to 13 mm lens
- Varifocal: Manual zoom and focus adjustment
- Iris Control: Automatic iris control
- Viewing Angle: Wide: 87º x 48º (H x V), Tele: 26º x 14.1º (H x V )
- Environmental:
- Operating Temperature: -58°F to 122°F (-50°C to 50°C)
- Storage Temperature: -22°F to +158°F (-30°C to +70°C)
- Operating Humidity: 20% to 93% RH
- Storage Humidity: up to 98% RH
- Vandal Resistant: Ik10 Rating
- Ingress Protection Rating: IP66, NEMA 4x
- Electrical:
- Power Supply: 24 VAC ±;10% 50/60 Hz, 12 VDC ±;10%, Power-over-Ethernet 48 VDC nominal
- Current Consumption: 1 A (12 VDC), 0.8 A (24 VAC), 0.3 A (PoE 48 VDC)
- Power Consumption: Heater on: 11 W (12 VDC), 15.8 W (24 VAC), 13.4 W (PoE 48 VDC); Heater off: 6 W (12 VDC), 10.8 W (24 VAC),8.4 W (PoE 48 VDC)
- Electromagnetic Compatibility: Emission, EN55022 Class B, FCC Part 15 Class B
- Immunity: EN50130-4 (PoE, +12 VDC, 24 VAC)* EN50121-4
- Safety: EN60950-1, UL60950-1 (2nd edition), CAN/CSA-C 22.2 No. 60950-1
- Vibration: Camera with lens as per IEC60068-2-6 (5 m/s2, operational)
- Mechanical:
- Dimensions: (D x H): 8.2" x 5.95" (208 mm x 151 mm)
- Weight: 4.85 lb (2.2 kg)
|
