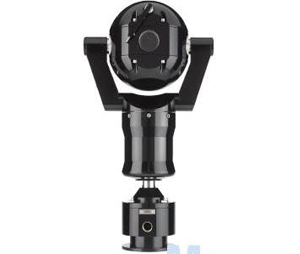

Bosch BOS-MIC440AXWUW14636N Explosion Protected Security Camera
×
This image is for a similar product but it will differ in size, color and/or other attributes.
×
This product review video is for a similar product but it will differ in size, color and/or other attributes.
Price:
$
15,328.12 USD
In Stock Ready for Shipment
Comments
(Optional)
ADD TO CART
This item is not in stock and typically ships in 1 business day.
Check Inventory
Request Quote
No Minimum
There is no minimum quantity required for this product for quantities up to the level listed below.
Minimum Order Levels Apply
This item has minimum order levels that need to be met.
Check Inventory Levels
Enter your email address and we will check with all available sources and get back to you with exact inventory levels and estimated shipping times.
Qty. Needed:
Request Quote
Enter the qty needed and we will generate a quote and save your order in our system.
You will not be charged and we will not fulfill the order.
Qty. Needed:
+ Add to My Wish List
1-844-809-3667
Sales
sales@absupply.net
Technical Support
tech@absupply.net
Product Description:
Bosch BOS-MIC440AXWUW14636N Explosion Protected Security Camera
Model: MIC440AXWUW14636N
Features:
Camera Module:
Image sensor: 1/4" EXview CCD
Picture Elements: 380 K NTSC / 440 K PAL (WIDE)
Horizontal Resolution:
18x Module: 470 TVL NTSC/PAL typical
36x Module: 470 TVL NTSC/PAL typical
Filter: Automatic Mechanical IR Cut Filter
Focus System: Auto or Manual
Iris: Auto or Manual with Slow Shutter Integration Modes
Synchronization: Internal / External (V-Lock)
Recommended Illumination: 100 to 100,000 lux
Signal/Noise Ratio: 50 dB or more
Back Light Compensation (BLC): On/Off
White Balance: Automatic
Automatic Gain Control (AGC): -3 to -28 dB, 2 dB Steps
Aperture Control: 16 Steps
18x Optical Zoom Module:
Lens: F=4.1 mm (WIDE) to 73.8 mm (TELE), F1.4 to F3.0
Zoom: 18x optical (12x digital)
Angle of View: 48° (WIDE end) to 2.8° (TELE end)
Minimum Illumination:
0.7 lux (F1.4, 1/60s NTSC, 1/50s PAL)
0.11 lux (F1.4, 1/4s NTSC, 1/3s PAL)
0.01 lux or less (F1.4, 1/4s NTSC, 1/3s PAL, ICR ON)
Shutter Speed: 1/1 to 1/10000s (22 steps) NTSC, PAL
36x Optical Zoom Module:
Lens: F=3.4 mm (WIDE) to 122.4 mm (TELE), F1.6 to F4.5
Zoom: 36x optical (12x digital)
Angle of view: 57.8° (WIDE end) to 1.7° (TELE end)
Minimum illumination:
1.4 lux (1/60 s NTSC, 1/50 s PAL, typical)
0.1 lux (1/4 s NTSC, 1/3 s PAL, typical)
ICR-ON mode: 0.01 lux (1/4 s NTSC, 1/3 s PAL)
Shutter Speed: 1/4 to 1/10000s (20 steps) NTSC, 1/3 to 1/10000s (20 steps) PAL
Operational:
Auto Flip: Yes
Manual Flip: Yes
Presets: 64 Telemetry Presets utilizing Resolver Technology (using FV Protocol, 10 Camera Set-Up Oresets to Allow ANPR, Color Correction, etc.)
Preset Tours: 6 Tours each with up to 32 Presets
Sector Titles: Yes (64 sectors) 20 Characters per Title
Preset Titles: 20 Character Caption for each of the 64 Presets
Home Position: Yes (Preset 1 or Tour)
Communication and Protocols:
Communication: RS485 / RS422
Control Protocol: Bosch, Forward Vision, Pelco, American Dynamics, and VCL protocol variants available. Bi-phase control requires Biphase to RS485 converter (MIC-BP4) to be installed in the power supply
Connectivity:
Video: Co-Axial via Composite Cable
Telemetry: Twisted Pair; Simplex, Half and Full Duplex Operation via Composite Cable
Power: Via Composite Cable
Alarms:
Alarm Inputs: 1 Tamper Input (Additional Inputs possible with optional Alarm Card in PSU)
Alarm Communication: Tamper Switch (Ground Connection)
Mechanical:
Drive Unit: Integral Pan/Tilt Motor Drive
Pan Angle: 360° Continuous Rotation
Pan Speed: Up to 90° per second (Variable)
Tilt Angle: 240°
Tilt Speed: 0.2° to 90° per second (Variable)
Speed Control: Closed-Loop Electronics
Preset Accuracy: Better than 0.08°
Proportional P/T to Zoom: Yes
Physical:
Construction Material: Machined Aluminum
Viewing Window: Tempered Flat Glass
Standard Colors: Black (RAL9005), White (RAL9003)
Standard Finish: Alochrom 1200 Surface Treatment with Powder Coat Paint
Dimensions (W x H x D): 286mm x 523.6mm x 189mm (including deep conduit adapter)
Weight: 15.5 kg (34.17lbs)(including 4" PCD base and supplied deep conduit adapter)
Environmental:
Operational Temperature: -20°C - 60°C (-4°F - 160°F)
Weatherproofing: IP68
Electrical:
Input Voltage: 18V AC
Power Consumption: 25.2W max
