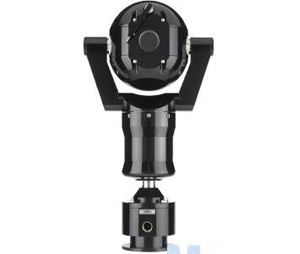

Model: MIC440AXBUA14618N
Features:
- Image sensor: 1/4" EXview CCD
- Picture elements: 380 K NTSC / 440 K PAL (WIDE)
- Horizontal resolution: 18x module:
- 470 TVL NTSC/PAL typical
- 36x module:
- 470 TVL NTSC/PAL typical
- Filter: Automatic mechanical IR cut filter
- Focus system: Auto or manual
- Iris: Auto or manual with slow shutter integration modes
- Synchronization: Internal / External (V-Lock)
- Recommended illumination: 100 to 100,000 lx
- Signal-to-Noise ratio (SNR): 50 dB or more
- Back Light Compensation (BLC): On/Off
- White balance: Automatic
- Automatic Gain Control (AGC): -3 to -28 dB, 2 dB steps
- Aperture control: 16 Steps
- Lens: F=4.1 mm (WIDE) to 73.8 mm (TELE), F1.4 to F3.0
- Zoom: 18x optical (12x digital)
- Angle of view: 48° (WIDE end) to 2.8° (TELE end)
- Minimum illumination: 0.7 lux (F1.4, 1/60s NTSC, 1/50s PAL, 50 IRE), 0.11 lux (F1.4, 1/4s NTSC, 1/3s PAL, 50 IRE), 0.01 lux or less (F1.4, 1/4s NTSC, 1/3s PAL, ICR ON)
- Shutter speed: 1/1 to 1/10000s (22 steps) NTSC, PAL
- Lens: F=3.4 mm (WIDE) to 122.4 mm (TELE), F1.6 to F4.5
- Zoom: 36x optical (12x digital)
- Angle of view:57.8° (WIDE end) to 1.7° (TELE end)
- Minimum illumination:
- 1.4 lux (1/60 s NTSC, 1/50 s PAL, typical, 50 IRE)
- 0.1 lux (1/4 s NTSC, 1/3 s PAL, typical, 50 IRE)
- ICR-ON mode: 0.01 lux (1/4 s NTSC, 1/3 s PAL)
- Shutter speed:
- 1/4 to 1/10000s (20 steps) NTSC
- 1/3 to 1/10000s (20 steps) PAL
- Auto Flip: Yes
- Manual Flip: Yes
- Presets: 64 Telemetry Presets Utilizing Resolver Technology (using FV Protocol, 10 Camera Set-Up Presets to allow ANPR, Color Correction, etc.)
- Preset tours: 6 Tours each with up to 32 Presets
- Sector titles: Yes (64 Sectors) 20 Characters per Title
- Preset titles: 20 Character Caption for each of the 64 Presets
- Home position: Yes (Preset 1 or tour)
- Communication and Protocols:
- Communication: RS485 / RS422
- Control Protocol: Bosch, Forward Vision, Pelco, American Dynamics, and VCL protocol variants available. Bi-phase Control requires Biphase to RS485 Converter (MIC-BP4) to be installed in the Power Supply
- Video: Co-Axial via Composite Cable
- Telemetry: Twisted pair; Simplex, Half and Full Duplex Operation via Composite Cable
- Power: Via Composite Cable
- Alarm Inputs: 1 Tamper Input (Additional Inputs Possible with Optional Alarm Card in PSU)
- Alarm Communication: Tamper Switch (Ground Connection)
- Drive unit: Integral Pan/Tilt Motor Drive
- Pan angle: 360° Continuous Rotation
- Pan speed: Up to 90° per second (Variable)
- Tilt angle: 240°
- Tilt speed: 0.2° - 90° per second (Variable)
- Speed control: Closed-Loop Electronics
- Preset accuracy: Better than 0.08°
- Proportional Pan/Tilt to zoom: Yes
- Input voltage: 18V AC
- Power consumption: 25.2 W max
- Operating temperature: -20°C - +60°C (-4°F - 160°F)
- Weatherproofing: IP68 (1m submersion for 24 hours maximum)
- Dimensions (W x H x D): 286mm x 523.6mm x 189 mm (11.26" x 20.61" x 7.44") (Including Deep Conduit Adapter)
- Weight: 15.5 kg (34.17 lbs) (including 4" PCD Base and Supplied Deep Conduit Adapter)
- Viewing Window: Tempered Flat Glass
- Construction Material: Machined Aluminum
- Standard Colors: Black (RAL9005), White (RAL9003)
- Standard Finish: Alocrom 1200 Surface Treatment with Powder Coat Paint
- Window Wiper: Standard
|
