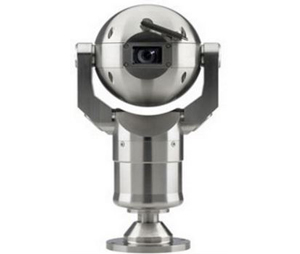

Bosch BOS-MIC400STSCP13536N Stainless Steel Camera
×
This image is for a similar product but it will differ in size, color and/or other attributes.
×
This product review video is for a similar product but it will differ in size, color and/or other attributes.
Price:
$
14,868.28 USD
In Stock Ready for Shipment
Comments
(Optional)
ADD TO CART
This item is not in stock and typically ships in 1 business day.
Check Inventory
Request Quote
No Minimum
There is no minimum quantity required for this product for quantities up to the level listed below.
Minimum Order Levels Apply
This item has minimum order levels that need to be met.
Check Inventory Levels
Enter your email address and we will check with all available sources and get back to you with exact inventory levels and estimated shipping times.
Qty. Needed:
Request Quote
Enter the qty needed and we will generate a quote and save your order in our system.
You will not be charged and we will not fulfill the order.
Qty. Needed:
+ Add to My Wish List
1-773-809-3667
Sales
sales@absupply.net
Technical Support
tech@absupply.net
Product Description:
Bosch BOS-MIC400STSCP13536N Stainless Steel Camera
Model: MIC400STSCP13536N
Features:
Camera:
Image Sensor: 1/4-" EXview CCD
Horizontal Resolution: 470TVL
Lens: F=3.4 mm (wide) to 122.4 mm (tele), F1.6 to F4.5
Angle of View: 57.8° (wide) to 1.7° (tele)
Minimum Illumination: 1.4 lux (1/60 s NTSC, 1/50 s PAL, typical, F1.6, 50IRE), 0.1 lux (1/4 s NTSC, 1/3 s PAL, typical, F1.6, 50IRE)
ICR-ON mode: 0.01 lux (1/4 s NTSC, 1/3 s PAL)
Shutter Speed: 1/4s to 1/10,000 s (20 steps)
Filter: Automatic mechanical IR cut filter
Focus System: Auto or manual
Iris: Auto or manual with slow shutter integration modes
Synchronization: Internal / External (V-Lock)
Signal to Noise Ratio: 50 dB or more
Backlight Compensation: On/Off
White Balance: Automatic
Gain Control: -3dB to -28 dB, 2 dB steps
Mechanical:
Drive Unit: Brushless integral pan/tilt motor drive
Pan Angle: 360° continuous rotation
Pan Speed: Up to 90°/sec (variable)
Tilt Angle: 320°
Tilt Speed: 0.2° - 90°/sec.
Communication and Protocols:
Communication: RS-485 / RS-422
Connectivity:
Video: Single Co-Axial via Composite Cable (Optical/Thermal Cameras, User Switchable)
Telemetry: Twisted Pair; Simplex, Half and Full Duplex Operation via Composite Cable
Power: Via Composite Cable
Environmental:
Operating Temperature: -40°F - 122°F (-40°C - 50°C)
Weather-Proof Rating: IP68
Electrical:
Input Voltage: 18 VAC
Power Consumption: 25.2W max. (with heater off), 37W max. (with heater on)
Construction:
Material: Grade 316L Stainless Steel
Viewing Window: Tempered Flat Glass
Window Wiper: Standard, Long-Life Silicone Wiper
Heater: Standard
Dimensions (W x H x D): 8.07" x 14.17" x 6.50" (205mm x 360mm x 165 mm)
Weight: 36.38lbs (16.5 kg)
