Features

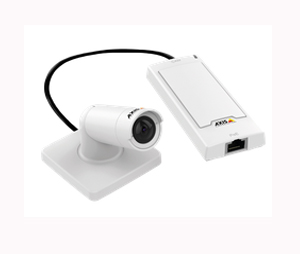

- Model: P1254
- Camera:
- Image Sensor: 1/4” (Effective) Progressive Scan RGB CMOS
- Lens: Fixed Iris: 2.1 mm, F2.2; Horizontal Field of View: 102°; Vertical Field of View: 56°
- Minimum Illumination: Color: 0.4 Lux
- Shutter Time: 1/24500 s to 1/6 s
- Camera Angle Adjustment: Pan: ±180°; Tilt: 0 to 90°; Rotation ±90°
- Video:
- Video Compression: H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles Motion JPEG
- Resolutions: 1280x720 to 480x270
- Frame Rate: 25/30 fps (50/60 Hz)
- Video Streaming: Multiple, Individually Configurable Streams in H.264 (Main, Baseline and High Profiles) and Motion JPEG; Controllable Frame Rate and Bandwidth; VBR/MBR H.264; Axis' Zipstream Technology in H.264
- Image Settings: Compression, Color, Brightness, Sharpness, Contrast, White Balance, Exposure Value, Exposure Control, Exposure Zones, Local Contrast, Rotation, Corridor Format, WDR, Text and Image Overlay, Privacy Mask, Mirroring of Images
- Network:
- Security: Password Protection, IP Address Filtering, HTTPSa Encryption, IEEE 802.1Xa Network Access Control, Digest Authentication, User Access Log, Centralized Certificate Management
- Supported Protocols: IPv4/v6, HTTP, HTTPSa, SSL/TLSa, QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnPTM, SNMPv1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SFTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH
- System Integration:
- Application Programming Interface: Open API for Software Integration, Including VAPIX® and AXIS Camera Application Platform (ACAP); AXIS Video Hosting System (AVHS) with One-Click Connection ONVIF Profile S
- Analytics: AXIS Video Motion Detection 3, Active Tampering Alarm Support for AXIS Camera Application Platform Enabling Installation of AXIS Cross Line Detection and Third-party Applications
- Event Triggers: Analytics; Edge Storage Events
- Event Actions File Upload: email, FTP, HTTP, HTTPS, Network Share; Notification: email, HTTP, HTTPS and TCP; Pre- and Post-alarm Video Buffering; Send SNMP Trap, WDR Mode
- Built-in Installation Aids: Pixel Counter
- Data Streaming: Event Data
- General:
- Casing: AXIS P12 Mk II Main Unit: Steel and Llastic; AXIS F1004 Bullet Sensor Unit: Plastic
- Memory: 512 MB RAM, 256 MB Flash
- Power: Power over Ethernet IEEE 802.3af/802.3at Type 1 Class 2 max 4.0 W, Typical 2.5 W
- Connectors Female RJ45 for 10BASE-T/100BASE-TX PoE; RJ12 for Sensor Unit
- Storage: Support for MicroSD/MicroSDHC/MicroSDXC Card up to 64 GB (Card Not Included); Support for Recording to Dedicated Network-attached Storage(NAS)
- Operating Conditions: -20°C to 50°C (-4°F to 122°F); Humidity 10-85% RH (Non-condensing)
- Storage Conditions: -40°C to 65°C (-40°F to 149°F)
- Dimensions: AXIS P12 Mk II Main Unit: 16.5 mm x 46 mm x 109 mm (5/8" x 1 13/16" x 4 5/16"); Sensor Unit Cable: 8 m (26 ft)
- Weight: AXIS P12 Mk II Main Unit: 72 g (2.5 oz); Sensor Unit Cable: 128 g (4.5 oz)
|
