Axis Communications AXS-DOMEMICROPHONEA

Model: DOMEMICROPHONEA

Description:

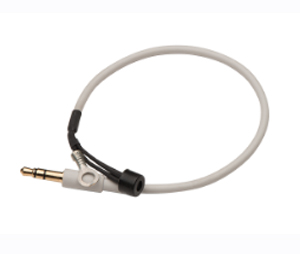

A dynamic microphone for sound pickup. Mounted inside the dome of AXIS Q35-V cameras and plugged into the 3.5 mm microphone jack.

Specifications:

• Technical Information:
  • Connectivity Technology: Wired
  • Minimum Frequency Response: 20 Hz
  • Maximum Frequency Response: 16 kHz

• Microphone:
  • Microphone Technology: Dynamic
  • Microphone Sensitivity: -36 dB
  • SPL: Max SPL, Peak before Clipping 100 dB
  • SNR: 58 dB A-weighted (relative 1 kHz @ 1 Pa, 94 dB SPL)
  • Impedance: 2.2 kOhms @ 1 kHz

• Interfaces/Ports:
  • Host Interface: Mini-phone
