Arecont Vision ARC-AV3226PMTIRS

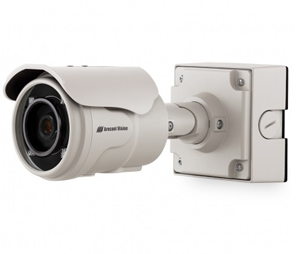

Name: Arecont Vision ARC-AV3226PMTIRS 3MP Indoor/Outdoor Vandal-Resistant IR Day/Night Bullet IP Camera
Brand: Arecont Vision
SKU: Arecont Vision ARC-AV3226PMTIRS
Price: 1390.25 USD

Arecont Vision ARC-AV3226PMTIRS 3MP Indoor/Outdoor Vandal-Resistant IR Day/Night Bullet IP Camera

× This image is for a similar product but it will differ in size, color and/or other attributes.

Arecont Vision ARC-AV3226PMTIRS 3MP Indoor/Outdoor Vandal-Resistant IR Day/Night Bullet IP Camera

Price: $1,390.25 USD

Comments (Optional)

ADD TO CART

This item is not in stock and typically ships in 1 business day.

+ Add to My Wish List

1-844-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:

Arecont Vision ARC-AV3226PMTIRS 3MP Indoor/Outdoor Vandal-Resistant IR Day/Night Bullet IP Camera

Features:

Model: ARC-AV3226PMTIRS
Product Type: 3MP Indoor/Outdoor Vandal-Resistant IR Day/Night Bullet IP Camera
Image Sensor: 3 MP CMOS (Complementary Metal-Oxide Semiconductor)
Optical Format: 1/3.2"
Pixel Pitch: 2.2 µm
Minimum Illumination:

Color (Day Mode): 0.3 lux
Color Binning (Day Mode): 0.15 lux
B/W (Night Mode): 0 lux, IR Sensitive

Resolution:

Full FOV: 2048 H x 1536 V
1/4 Resolution: 1024 H x 768 V

Dynamic Range: WDR Up to 100 dB
Signal to Noise Ratio: 49 dB Maximum
Frame Rates:

At Maximum Resolution: 21 fps (2048 x 1536)
Cropped: 30 fps (1920 x 1080) & 41 fps (1280 x 1024)
Binning Mode: 21 fps (1024 x 768), 27 fps (800 x 600), 31 fps (960 x 540), & 32 fps (640 x 512)

Lens: Motorized 8 to 22 mm, 1/2.7", F1.6, RZ, RF, P-Iris, H-FOV: 32 to 12°
Compression Type: H.264 (MPEG-4, Part 10) / Motion JPEG, 21 Levels of Quality
Network Interface: 100Base-T Ethernet Network Interface
Multi-Streaming: 8 Non-Identical Streams
IR Illuminator

4 x 850nm LEDs
IR Angle: 33° (No External Power Required)

IR Distance: 197' (60 m) Maximum
Power Consumption: 12.4 W Maximum
Alarm Input/Output: General Purpose Opto-Coupled Input
Power Over Ethernet: PoE 802.3af, Class 2
Auxiliary Power Input: 12 to 48 VDC, 24 VAC
Casing:

Die-Cast Aluminum Cylindrical (Bullet-Style) Housing
IP66 Weather-Proof Standard
Vandal Resistant

Mount: Easily Adjustable 3-Axis Mount with 360° Pan, 90° Tilt, and 360° Z-Axis Adjustment
Temperature:

Operating: -40 to 122°F (-40 to 50°C)
Stable Image: 32 to 122°F (0 to 50°C)
Storage: -40 to 140°F (-40 to 60°C)

Humidity: 0 to 90% (Non-Condensing)
Dimensions (H x W x D): 4.7 x 4.7 x 11.1" (11.9 x 11.9 x 28.2 cm)
Weight: 3.9 lb (1.8 kg)
