Arecont Vision ARC-AV314504W
Arecont Vision ARC-AV314504W

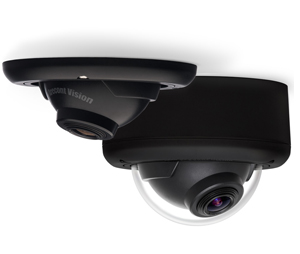

Arecont Vision ARC-AV314504W MegaBall 3 Mp IP Indoor Color Camera
×
This image is for a similar product but it will differ in size, color and/or other attributes.
×
This product review video is for a similar product but it will differ in size, color and/or other attributes.
Price:
$
729.46 USD
In Stock Ready for Shipment
Comments
(Optional)
ADD TO CART
This item is not in stock and typically ships in 1 business day.
Check Inventory
Request Quote
No Minimum
There is no minimum quantity required for this product for quantities up to the level listed below.
Minimum Order Levels Apply
This item has minimum order levels that need to be met.
Check Inventory Levels
Enter your email address and we will check with all available sources and get back to you with exact inventory levels and estimated shipping times.
Qty. Needed:
Request Quote
Enter the qty needed and we will generate a quote and save your order in our system.
You will not be charged and we will not fulfill the order.
Qty. Needed:
+ Add to My Wish List
1-844-809-3667
Sales
sales@absupply.net
Technical Support
tech@absupply.net
Product Description:
Arecont Vision ARC-AV314504W MegaBall 3 Mp IP Indoor Color Camera
Features:
Model: ARC-AV314504D
Product Type: 3 Mp IP MegaBall Indoor Color Dome Camera
Sensor:
Type: 3 Mp CMOS (Complementary Metal-Oxide Semiconductor) Image Sensor
Format: 1/2.5" optical
Pixel: 2.2 µm Pitch
Mount Type: Wall Mount
Minimum Illumination:
Color (Non-Binned): 0.3 lux
Color (Binned): 0.15 lux
Dynamic Range: 70.1 dB
Signal to Noise Ratio: 45 dB
Resolution:
Full Field of View (FOV)
2048 x 1536 @ 3 Mp
1024 x 768 @ 1/4 Resolution
Cropped (FOV)
Flexible Cropping: 2560 x 1600 QWXGA (AV5255)
2048 x 1536 3 Mp (AV5255)
1920 x 1080 HDTV - 1080p
1280 x 1024 1.3 Mp
1280 x 720 HDTV - 720p
640 x 480 VGA (Video Graphics Array)
Data Transmission:
Video frame Rate Up to 14 fps @ 2592 x 1944, 21 fps @ 2048 x 1536, 29 fps @ 1920 x 1080, 41 fps @ 1280 x 1024
In Binned Mode Up to 34 fps @ 1296 x 972, 47 fps @ 1024 x 768, 64 fps @ 960 x 540
Compression Type: H.264 (MPEG4, Part 10) / Motion JPEG, 21 Levels of Quality
Network Interface: 100Base-T Ethernet Network Interface
Streaming Capability:
Multi-Streaming: 8 Non-Identical Streams
Electrical:
General Purpose Opto-Coupled Input and Output
Power over Ethernet (PoE): PoE 802.3af for the Camera
Auxiliary Power: 12 to 48 VDC, 24 VAC
Power Consumption: 4.5 W Maximum
Environmental:
Operating Temperature: 23 to 122°F (-5 to 50°C)
Stable Image Temperature: 32 to 122°F (0 to 50°C)
Storage Temperature: -4 to 140°F (-20 to 60°C)
Humidity: 0 to 90% (Non-Condensing)
Mechanical:
Casing: Die-Cast Aluminum 3.0" (76.2 mm) Metal Ball and Bracket
Dimensions (Ø x H): Ø3.00 x 5.76" (76.2 x 146.2 mm)
Weight: 1.20 lb (0.54 kg)
Lens:
Focal Length: 4 mm
Aperture: F1.6
Field of View:
Horizontal: 71°
Brochure
Data Sheet
Product Matrix
Installation Manual
Product Line Card
