Arecont Vision ARC-AV2146DN3310W

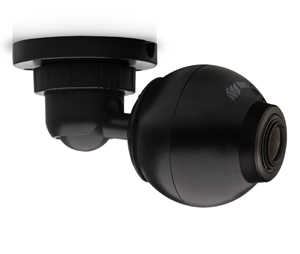

Name: Arecont Vision ARC-AV2146DN3310W 1080p WDR MegaBall Day/Night Camera with 3.3 to 10mm Lens
Brand: Arecont Vision
SKU: Arecont Vision ARC-AV2146DN3310W
Price: 746.62 USD

Arecont Vision ARC-AV2146DN3310W 1080p WDR MegaBall Day/Night Camera with 3.3 to 10mm Lens

× This image is for a similar product but it will differ in size, color and/or other attributes.

Arecont Vision ARC-AV2146DN3310W 1080p WDR MegaBall Day/Night Camera with 3.3 to 10mm Lens

Price: $746.62 USD

Comments (Optional)

ADD TO CART

This item is not in stock and typically ships in 1 business day.

+ Add to My Wish List

1-844-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:

Arecont Vision ARC-AV2146DN3310W 1080p WDR MegaBall Day/Night Camera with 3.3 to 10mm Lens

Features:

Model: ARC-AV2146DN3310W
Product Type: 1080p WDR MegaBall Day/Night Camera with 3.3 to 10mm Lens
Pixel Density: 2.07 Mp
Image Sensor: Progressive scan CMOS (Complementary Metal-Oxide Semiconductor) WDR (Wide Dynamic Range) image Sensor
Shutter Speed: 1 to 500 ms
Optical Format: 1/3.2" Optical Format
Pixel Pitch: 2.2 µm
Full Field of View Resolution:

H x V: 1920 x 1080

Cropped (FOV) (Field of View) Resolution: 960 x 540 1.3 Mp: 1280 x 1024 720p HDTV: 1280 x 720 VGA (Video Graphics Array): 640 x 480
Minimum Illumination:

Color (Non-Binned): 0.3 lux @ F1.4
Day/Night: 0 lux, IR Sensitive

Wide Dynamic Range: Up to 100 dB
Signal to Noise Ratio: Maximum 49 dB
Video Frame Rate:

30 fps @ 1920x1080
41 fps @ 1280x1024

Compression Type: H.264 (MPEG-4, Part 10)/Motion JPEG 21 Levels of Quality
Ethernet Interface: Network: 100Base-T
Multi-Streaming: 8 Non-Identical Streams
Motion Detection:

On-Camera: Up to 1024 Detection Zones

White Balance: Auto Multi-Matrix White Balance
Flicker Filter Control: 50/60 Hz
PTZ Control: Electronic Pan, Tilt, Zoom
Image Flip:

Electronic: 180º Rotation

Lens:

Lens Type: 3.3 to 10mm, F1.6 , ½.5"
Field of View: 73 to 26°

Electrical:

Power Over Ethernet: 802.3 af
Auxiliary Power Input: 12 to 48 VDC and 24 VAC
Power Consumption: 5.43 W

Environmental:

Operating Temperature: 23 to 140°F (-5 to 60°C)
Storage Temperature: -4 to 140°F (-20 to 60°C)
Stable Image Temperature: 32 to 122°F (0 to 50°C)
Humidity: 0 to 90% (non condensing)

Mechanical:

Casing: Die-Cast Aluminum 3.0" (76.2 mm) Metal Ball and Mount
Mount: Embedded In-Ceiling Mount
Adjustments:

Camera: 3-Axis Camera Adjustment with 360° Pan, 90° Tilt & 360° Z-Axis
Lens: External Lens Adjustment for zoom, Focus and Iris

Diameter: Ø3.0 x 6.15" (76.2 x 6.15 mm)
