Arecont Vision ARC-AV2116DNV1
Arecont Vision ARC-AV2116DNV1

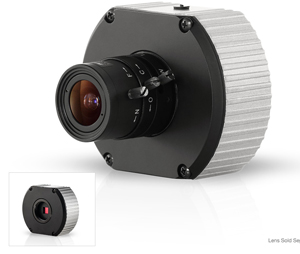

Arecont Vision ARC-AV2116DNV1 MegaVideo Full HD 1080p Day/Night IP Camera with WDR
×
This image is for a similar product but it will differ in size, color and/or other attributes.
×
This product review video is for a similar product but it will differ in size, color and/or other attributes.
Price:
$
494.30 USD
In Stock Ready for Shipment
Comments
(Optional)
ADD TO CART
This item is not in stock and typically ships in 1 business day.
Check Inventory
Request Quote
No Minimum
There is no minimum quantity required for this product for quantities up to the level listed below.
Minimum Order Levels Apply
This item has minimum order levels that need to be met.
Check Inventory Levels
Enter your email address and we will check with all available sources and get back to you with exact inventory levels and estimated shipping times.
Qty. Needed:
Request Quote
Enter the qty needed and we will generate a quote and save your order in our system.
You will not be charged and we will not fulfill the order.
Qty. Needed:
+ Add to My Wish List
1-844-809-3667
Sales
sales@absupply.net
Technical Support
tech@absupply.net
Product Description:
Arecont Vision ARC-AV2116DNV1 MegaVideo Full HD 1080p Day/Night IP Camera with WDR
Features:
Model: ARC-AV2116DNV1
Product Type: MegaVideo Full HD 1080p Day/Night IP Camera with WDR (Wide Dynamic Range)
Sensor Type: 2.07 Mp Progressive Scan Effective CMOS (Complementary Metal-Oxide Semiconductor) Image Sensor, Format: 1/3.2" Optical, Pixel: 2.2 µm Pitch
Lens Mount: C/CS
Minimum Illumination: Color: 0.3 lux @ f/1.4, Day & Night: 0 lux, IR Sensitive
Wide Dynamic Range: Up to 100 dB
Signal to Noise Ratio: 49 dB, Maximum
Full Field of View: 1920 x 1080 @ 1080p, 1296 x 972 @ 1/4 Resolution
Flexible Cropping: Crop to 2 Pixels in H.264 and 1 Pixel in JPEG, 1280 x 1024 at 1.3 Mp, 1280 x 720 at HDTV-720p, 640 x 480 at VGA (Video Graphics Array)
Data Transmission; Video Frame Rate, Up to 30 fps @ 1920 x 1080, Up to 41 fps @ 1280 x 1024
Compression: H.264 (MPEG4, Part 10) / Motion JPEG, 21 Levels of Quality
Network Interface: 100Base-T Ethernet
Streaming Capability: Multi-Streaming: 8 Non-Identical Streams
Electrical: General Purpose Opto-Coupled Input and Output
Power over Ethernet: 802.3af for Camera
Auxiliary Power: 12 to 48 VDC, 24 VAC
Power Consumption: 5.43 W, Maximum
Operating Temperature: 23 to 122°F (-5 to 50°C)
Stable Image Temperature: 32 to 122°F (0 to 50°C)
Storage Temperature: -4 to 140°F (-20 to 60°C)
Humidity: 0 to 90% (Non-Condensing)
Dimensions (W x H x D): 3.00 x 2.50 x 1.25" (76.00 x 63.50 x 31.70 mm) without Lens
Weight: 5.8 oz (164.0 g) without Lens
Package Weight: 0.6 lb
Box Dimensions (LxWxH): 4.1 x 4.0 x 3.7"
Product Catalog
Brochure
Data Sheet
Technology Brochure
Product Matrix
Lens Data Sheet
Product Line Card
Installation Manual
Recommended Lenses for WDR Cameras
