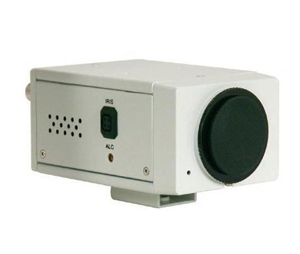

- Model: ADCIPEBPN
- Description:
- VideoEdge® IP Fixed Cameras deliver a superior feature set for the price. Whether it is high-resolution, true day/night, on-board SD card storage or USB interface, the cameras offer excellent performance. The VideoEdge® IP Indoor Box Cameras offer up to 16 GB of local SD card storage to help reduce network issues. True day-night functionality driven by a mechanical IR cut filter provides low light visibility. Power over Ethernet (PoE) enables a single cable to power the device while sending video and receiving commands saving time and installation cost. These IP box cameras are compatible with the same lenses and mounts used by American Dynamics analog box cameras. No need to learn new installation techniques or model numbers. At D1 resolution image clarity is superior. MJPEG and MPEG-4 compression technologies provide flexible bandwidth management, allowing you to tailor the image to meet your needs. Ease of configuration a concern? Each of the VideoEdge® IP Box Cameras has a USB interface. Connect your PC or laptop to the camera, and the configuration manager for the camera appears in your browser. Make your changes, click ‘save’, and move to the next camera.
- Features:
- Compression: MJPEG/MPEG-4
- Frame Rate: MJPEG: 30 ips 720x480, MPEG-4: 30 ips 720x480
- Video Output: 1.0 Vp-p, 75 ohm, Composite, Negative, BNC x 1
- Maximum Resolution:720x480
- Imager: 1/3 inch CCD
- Day/Night: Auto
- Motion Detection: 96 Zones
- Audio: Single Stream
- Dual Streaming: Single Stream
- Minimum Illumination: 0.5 Lux at F1.2 color, 0.03 Lux at F1.2 B/W

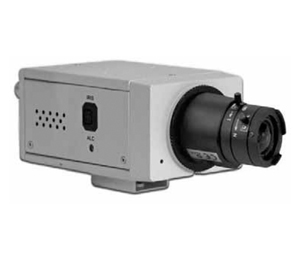

- Lens Type: C/CS Mount (Lens Not Included)
- Auto-Iris Support: DC Iris
- Interface: Ethernet 10/100Base-TX
- Ethernet Port: RJ-45
- Supported Protocols: TCP/IP, DHCP, HTTP, ICMP, UPnP, ARP, DNS, DDNS, PPPoE, SMTP, FTP, RTSP
- Web Browser: MS IE 6.x or Greater
- Security: Multi-level, Multi-users, IP Address Filtering
- Development Tools: SDK/CGI/DLL
- Ports: USB 2.0 Port
- Dimensions (L x H x D): 60mm x 45mm x 94mm (2.36" x 1.77" x 3.70" )
- Weight: 0.31kg (0.69lbs)
- Housing Color: White
- Operating Temperature: 0°C - 50°C (32°F - 122°F)
- Emissions: FCC 107 & 109, Part 15b; CE: EN55022, Class B; CE: EN6100-3-2, 3-3; ICES-003/NMB-003, Class B; AS/NZS CISPR22, Class B
- Immunity: CE: EN50130-4
- Safety: UL
- Power Input: 12 V DC / PoE
- PoE Support: Yes
|
