American Dynamics AMD-CPAKOPTDN211N
American Dynamics AMD-CPAKOPTDN211N
American Dynamics AMD-CPAKOPTDN211N Camera Pack, Color
×
This image is for a similar product but it will differ in size, color and/or other attributes.
×
This product review video is for a similar product but it will differ in size, color and/or other attributes.
Price:
$
561.10 USD
In Stock Ready for Shipment
Comments
(Optional)
ADD TO CART
This item is not in stock and typically ships in 1 business day.
Check Inventory
Request Quote
No Minimum
There is no minimum quantity required for this product for quantities up to the level listed below.
Minimum Order Levels Apply
This item has minimum order levels that need to be met.
Check Inventory Levels
Enter your email address and we will check with all available sources and get back to you with exact inventory levels and estimated shipping times.
Qty. Needed:
Request Quote
Enter the qty needed and we will generate a quote and save your order in our system.
You will not be charged and we will not fulfill the order.
Qty. Needed:
+ Add to My Wish List
1-773-809-3667
Sales
sales@absupply.net
Technical Support
tech@absupply.net
Product Description:
American Dynamics AMD-CPAKOPTDN211N Camera Pack, Color
Model: CPAKOPTDN211N
Features:

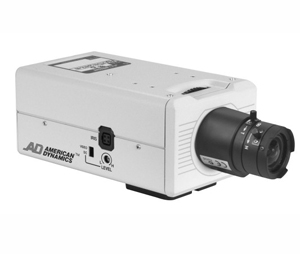

Camera:
540 TVL models with Night-Saver mode
True Day/Night models with moving mechanical IR cut filter
Available in 24 VAC/12 VDC NTSC
Superior low-light performance
Auto white balance (AWB) adjusts for accurate colors across a multitude of lighting conditions
Automatic gain control (AGC)
Automatic electronic shutter (AES)
Backlight compensation (BLC)
Phase adjustable line-lock or internal synchronization
Compatible with C/CS lenses, video, or DC auto iris versions, including choice of IR corrected, vari-focal lenses for use with True Day/Night camera models
Day/Night
Lens:
1/3" IR Corrected Vari-Focal 2.8 - 11 mm
CS mounts
Advanced optical design eliminates shifts of focus in near infrared range
Multi-layer coating prevents transmittance fall off in the infrared range
Specifically designed for True Day/Night cameras and any high optical performance color camera
Aspherical lens design provides outstanding image quality
Built-in slip mount and ring locking mechanisms
IP + Analog compatible

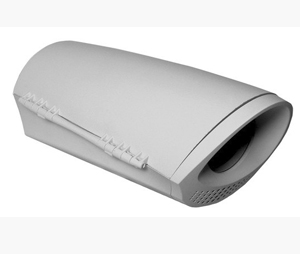

Housing:
Maximum Camera/Lens Size: 253 mm (10")
Indoor/outdoor housing
Space - efficient design accepts most cameras and lenses
Cover opens 180° for easy camera access
Tough, high-impact polymer construction
IP4/NEMA-3R protection
Automatic regulating heater available
24 VAC blower, optional
24 VAC heater, optional
Tamper resistant
Electrically isolated camera platform
Multiple cable pass mounts available

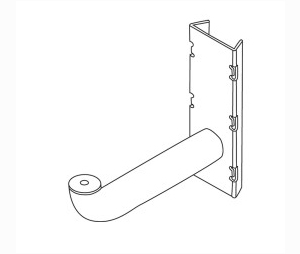

Pole Mount:
Indoor/outdoor mounts
Load capacity: up to 8 kg (18.6 lbs)
Adjustable swivel head
Beige or black enamel finish to complement housing
Concealed cabling
Specifications:
Camera Signal: Analog
Resolution: 540 TVL
Sensor Option: 1/3" CCD
Lens Type: Varifocal
Lens Size: 2.8-11mm
Infrared Distance: Non Infrared
Durability: Weather Resistant
Mount Type: Pole
Voltage: 12VDC, 24VAC
Image Device: Interline Transfer 1/3" CCD
Minimum Scene Illumination: 0.4 Lux, f1.2, AGC On, 0.02 Lux, f1.2, AGC On
Operating Humidity: <90% RH (noncondensing)
Operating Temperature: 14°F to 122°F (-10°C to 50°C)
Dimensions: 2.56" x 2.48" x 4.96" (67 mm x 63 mm x 126 mm)
Power Consumption: 4.8 W (400 mA)
S/N Ratio: -50 dB
Signal System: NTSC
Video Output: 1.0 Vp-p/75O, Composite
Synchronization: Internal/Line-lock
Backlight Compensation: 4 Zones/Off
Automatic White Balance: ATW/ATW Wide AWC (one touch) Manual Mode (adjustable)
Data Sheet - Camera
Data Sheet - Lenses
Data Sheet - Housing
