American Dynamics AMD-ADVEIPSD22P

Name: American Dynamics AMD-ADVEIPSD22P Dome Camera
Brand: American Dynamics
SKU: American Dynamics AMD-ADVEIPSD22P
Price: 2531.24 USD

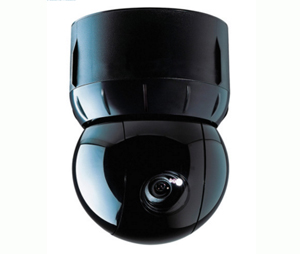

American Dynamics AMD-ADVEIPSD22P Dome Camera

× This image is for a similar product but it will differ in size, color and/or other attributes.

American Dynamics AMD-ADVEIPSD22P Dome Camera

Price: $2,531.24 USD

Comments (Optional)

ADD TO CART

This item is not in stock and typically ships in 1 business day.

+ Add to My Wish List

1-773-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:

American Dynamics AMD-ADVEIPSD22P Dome Camera

Model: ADVEIPSD22P
Features:

Uses the intuitive Illustra Connect tool to make installation and configuration fast and easy
22x optical zoom and 11x digital zoom for a total of 242x zoom
Offers resolution of up to 470 TVL
Supports 25 ips in H.264, MJPEG, MPEG-4 and ACC
Improved video and audio streaming
Time-stamped video and audio can provide synchronized information
Up to 32 privacy zones
Supports up to 96 preset positions with user-defined titles and 16 preset sequences
Built-in Web server
Fully compatible with VideoEdge NVR v4.01 and Intellix IP
ONVIF-compatible

Specifications:

Camera:

Imager: Interline transfer 1/4" CCD array
Horizontal Resolution: 470 TVL
Scanning System: 2:1 interlaced
S/N Ratio: >50 dB (typical)
Minimum Illumination: 0.3 lux (Color); 0.02 lux (Color with 1/4 sec open shutter)
White Balance: Through the Lens (TTL) Automatic; Tracing White Balance (ATW)
Shutter Speed: 1/2 to 1/30000 (1/1.5 to 1/30000)

Lens:

Focal Length: 4 to 88 mm
Aperture (Aspherical Design): f/1.6
Field of View: Wide Angle: 4 mm (H x V): 47.3° x 35.2°; Telephoto: 88 mm (H x V): 2.2° x 1.05°
Zoom: Total: 242x; Optical: 22x; Digital: 11x
Analog Video Output: 1.0 Vpp, 75 O composite

Resolution:

Video Resolution: 320 x 240 to 720 x 576
Audio Compression Format: PCM, G711A, G711U

Operational:

Manual Pan/Tilt Speeds: 0.25 to 100° per sec (based on Zoom Manual position)
Preset Pan/Tilt Speeds: 360° per sec maximum (pan) and 220° per sec maximum (Tilt)
Pan Travel: 360° Continuous
Tilt Travel: 110°
Pan/Tilt Accuracy: ±0.5°
Zoom/Focus Accuracy: ±0.5%
Programmable Patterns/Sequences/Areas/Privacy Zone: 96/16/16/16/32/1
Indicators: Direction Indicators
Alarm Inputs: 4
Alarm Outputs: 1 x Relay Alarm Output
