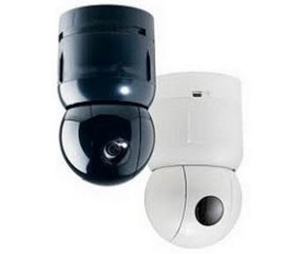

Model: ADSDU8E35IHN
Features:
- Camera:
- Horizontal Resolution: 540 lines
- Sensor: 1/4" IT CCD array
- Scanning System: 2:1 interlaced
- Wide Dynamic Range, EIS, Day/Night: Yes
- Video Output: 1.0 Vp-p, 75 composite
- S/N Ratio: >50 dB (typical)
- Minimum Illumination (20IRE, AGC): 0.24 lux (color); 0.028 lux (color with 1/4 sec open shutter) 0.021 lux (B/W IR Mode); 0.00041 lux (B/W IR Mode with 1/2 sec open shutter)
- White Balance: Through the Lens (TTL) Automatic Tracing White Balance (ATW)
- Lens:
- Zoom: 420x (optical - 35x, digital - 12x)
- Aperture (Aspherical Design): F/1.4
- Focal Length: 3.4mm to 119 mm
- Field of View: Wide angle - 3.4 mm / 55.8 (H) x 41.8 (V)
- Telephoto (Field of View): 119 mm / 1.7 (H) x 1.3 (V)
- NTSC (PAL):
- Effective Pixels (H x V): 768 x 494 (752 x 582)
- Scanning (lines/fields/frames): 525 / 60 / 30 (625 / 50 / 25)
- Horizontal: 15.734 (15.625) kHz
- Vertical: 59.9 (50) Hz
- Shutter Speed: Auto/Manual: 1/2 to 1/30,000
- Regulatory VP SDU:
- Emissions:
- FCC: 47 CFR Part 15 Subpart B
- Class A
- CE: EN55022 Class B
- CE: EN61000-3-2; 3-3
- AS/NZS 3548, Class A
- CISPR22
- ICES-003
- Immunity CE: EN50130-4
- Safety:
- UL 1950
- CSA 22.2 No. 950
- EN60950-1
- IEC60950-1
- Power on:
- In-Rush Current: 1.5 A
- Allowable Drop-Out: 100 µsec
- Surge Protection: Low-capacitance Zener suppressor of 6.5 V, 1500 W Isolation transformer coupled, 2000 Vrms; PTC resettable fuse protects transformer; 9.8 V/1 A, 500 W, 8/20 µsec impulse
- RS-422/RS-485: 10 kA impulse rated gas tube
- Alarm Input/Aux Outputs: TVS rated at 9.8 V/1 A, 500 W, 8/20 µsec impulse
- Power Line: TVS rated at 9.8 V/1 A, 500 W, 8/20 µsec impulse, TVS rated at 60 V, 250 A, 1.5 J, 8/20 µsec impulse
- Address Range:
- RS-422/RS-485: 1 - 99
- Manchester: 1 - 64
- SensorNet: 1 - 255
- AD-UTC: Based on number of inputs
- Alarm Inputs with I/O Board (indoor only): 4 dry contacts / 3.5 mA sink
- Alarm Outputs with I/O Board (indoor only): 3 open collector drivers at 12 VDC, 40 mA
- Menu Languages: English, French, German, Italian, Spanish, Portuguese
- Operational:
- Manual Pan/Tilt Speeds: 0.25° to 100° per second (based on Zoom Manual position)
- Preset Pan/Tilt Speeds: 360° per second, maximum (Pan) and 220° per second, maximum (Tilt)
- Pan Travel: 360° continuous
- Tilt Travel: 110°
- Pan/Tilt Accuracy: ± 0.5°
- Zoom/Focus Accuracy: ± 0.5%
- Programmable Patterns/Sequences/Areas/Privacy Zone: 16 / 16 / 16 / 8
- Direction Indicators: Yes
- Auto Synchronizations: Line-Locked with remote V-phase adjustment or internal with built-in sync generator
- Electrical:
- Input Voltage: 18V to 30 V AC, 50/60 Hz Class 2 LPS
- Design Tolerance: 16V to 36 V AC, 50/60 Hz
- Power: 11 W
- Environmental:
- Operating Temperature: 14°F to 122°F (-10°C to 50°C)
- Humidity: 0 to 95% RH (noncondensing)
- Storage Temperature: -4°F to 149°F (-20°C to 65°C)
- Mechanical:
- Height (Includes Base): 8.0" (205 mm)
- Diameter: 4.7" (120 mm)
- Housing and Eyeball Weight: 2.40 lb (1.09 kg)
- Base (with I/O Board) Weight: 0.35 lb (0.16 kg)
|
