American Dynamics AMD-ADSDU8E22OPCN

Name: American Dynamics AMD-ADSDU8E22OPCN SpeedDome Ultra 8E Programmable Outdoor Dome Camera Kit
Brand: American Dynamics
SKU: American Dynamics AMD-ADSDU8E22OPCN
Price: 2273.11 USD

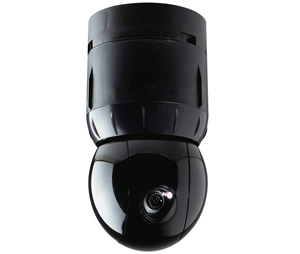

American Dynamics AMD-ADSDU8E22OPCN SpeedDome Ultra 8E Programmable Outdoor Dome Camera Kit

× This image is for a similar product but it will differ in size, color and/or other attributes.

American Dynamics AMD-ADSDU8E22OPCN SpeedDome Ultra 8E Programmable Outdoor Dome Camera Kit

Price: $2,273.11 USD

Comments (Optional)

ADD TO CART

This item is not in stock and typically ships in 1 business day.

+ Add to My Wish List

1-844-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:

American Dynamics AMD-ADSDU8E22OPCN SpeedDome Ultra 8E Programmable Outdoor Dome Camera Kit

Model: ADSDU8E22OPCN

Features:

Operational:

Manual Pan/Tilt: 0.25-100 per second (based on Zoom Manual position)
Preset Pan/Tilt Speed: 360 per second, maximum (Pan) and 220 per second, maximum (Tilt)
Pan Travel: 360 continuous
Tilt Travel: 110
Pan/Tilt Accuracy: 0.5
Zoom/Focus Accuracy: 0.5%
Programmable Patterns/Sequences/ Areas/Privacy Zones: 16/16/16/8
Direction Indicators: Yes
Auto Synchronizations: Line-Locked with Remote V-phase adjustment or Internal with Built-in sync generator
Address Range RS-422/RS-485: 199
Manchester: 164
SensorNet: 1255
AD-UTC: Based on number of inputs
Alarm Inputs with I/O Board (indoor only): 4 dry contacts/3.5 mA sink
Alarm Outputs with I/O Board (indoor only): 3 open collector drivers at 12 VDC, 40mA
Menu Languages: English, French, German, Italian, Spanish, Portuguese

Electrical:

Input Voltage: 18 to 30 VAC, 50/60 Hz Class 2 LPS
Design Tolerance: 16 to 36 VAC, 50/60 Hz
Power: 11 watts

Power on:

In-Rush Current: 1.5 amps
Allowable Drop-Out: 100 µsec
Surge Protection:
- Low-capacitance Zener suppressor of 6.5 V, 1500 watts Isolation transformer coupled, 2000 Vrms
- PTC resettable fuse protects transformer
- 9.8V/1A, 500 watts, 8/20 sec impulse
RS-422/RS-485: 0kA impulse rated gas tube
Alarm Input/Aux Outputs: TVS rated at 9.8V/1A, 500 W, 8/20 sec impulse
Power Line
- TVS rated at 9.8V/1A, 500 W, 8/20 sec impulse
- TVS rated at 60 V, 250 A, 1.5 J, 8/20 sec impulse
