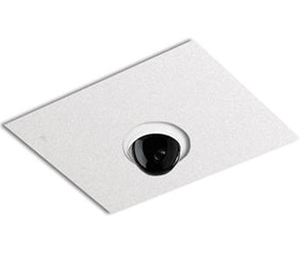

Model: ADSDU8E22I2X2N
Features:
- Camera:
- Horizontal Resolution: 470 lines
- Sensor: 1/4" IT CCD array
- Scanning System : 2:1 interlaced
- Wide Dynamic Range, EIS, Day/Night: No
- Video Output: 1.0 Vp-p, 75 composite
- S/N Ratio: >50 dB (Typical)
- Minimum Illumination (20IRE, AGC): 0.3 lux (color) 0.02 lux with 1/4 sec open shutter
- White Balance: Through the Lens (TTL) Automatic Tracing White Balance (ATW)
- Lens:
- Zoom: 242x (optical - 22x, digital - 12x)
- Aperture (Aspherical Design): F/1.6
- Focal Length: 4mm to 88mm
- Field of View: Wide angle - 4mm / 47.3 (H) x 35.2 (V)
- Telephoto (Field of View): 88mm / 2.2 (H) x 1.05 (V)
- NTSC (PAL):
- Effective Pixels (H x V): 768 x 494 (752 x 582)
- Scanning (lines/fields/frames): 525 / 60 / 30 (625 / 50 / 25)
- Horizontal: 15.734 (15.625) kHz
- Vertical: 59.9 (50) Hz
- Shutter Speed: Auto/Manual: 1/2 to 1/30,000
- Regulatory VP SDU
- Emissions: FCC: 47 CFR Part 15 Subpart B, Class A, CE: EN55022 Class B, CE: EN61000-3-2; 3-3, AS/NZS 3548, Class A, CISPR22, ICES-003
- Immunity: CE: EN50130-4
- Safety: UL 1950, CSA 22.2 No. 950, EN60950-1, IEC60950-1
- Power on:
- In-Rush Current: 1.5 A
- Allowable Drop-Out: 100 µsec
- Surge Protection: Low-capacitance Zener suppressor of 6.5 V, 1500 W Isolation transformer coupled,
- 2000 Vrms; PTC resettable fuse protects transformer; 9.8 V/1 A, 500 W, 8/20 µsec impulse
- RS-422/RS-485: 10 kA impulse rated gas tube
- Alarm Input/Aux Outputs: TVS rated at 9.8 V/1 A, 500 W, 8/20 µsec impulse
- Power Line: TVS rated at 9.8 V/1 A, 500 W, 8/20 µsec impulse, TVS rated at 60 V, 250 A, 1.5 J, 8/20 µsec impulse
- Address range:
- RS-422/RS-485: 1 - 99
- Manchester: 1 - 64
- SensorNet: 1 - 255
- AD-UTC: Based on number of inputs
- Alarm Inputs with I/O Board (indoor only): 4 dry contacts / 3.5 mA sink
- Alarm Outputs with I/O Board (indoor only): 3 open collector drivers at 12 VDC, 40 mA
- Menu Languages: English, French, German, Italian, Spanish, Portuguese
- Operational:
- Manual Pan/Tilt Speeds: 0.25° to 100° per second (based on Zoom Manual position)
- Preset Pan/Tilt Speeds: 360° per second, maximum (Pan) and 220° per second, maximum (Tilt)
- Pan Travel: 360° continuous
- Tilt Travel: 110°
- Pan/Tilt Accuracy: ±0.5°
- Zoom/Focus Accuracy: ±0.5%
- Programmable Patterns/Sequences/Areas/Privacy Zone: 16 / 16 / 16 / 8
- Direction Indicators: Yes
- Auto Synchronizations: Line-Locked with remote V-phase adjustment or internal with built-in sync generator
- Electrical:
- Input Voltage: 18 to 30 VAC, 50/60 Hz Class 2 LPS
- Design Tolerance: 16 to 36 VAC, 50/60 Hz
- Power: 11 W
- Environmental:
- Operating Temperature: 14°F to 122°F (-10°C to 50°C)
- Humidity: 0% to 95% RH (noncondensing)
- Storage Temperature: -4°F to 149°F (-20°C to 65°C)
- Mechanical:
- Dimensions:
- Height (Includes Base): 8.0" (205 mm)
- Diameter: 4.7" (120 mm)
- Weight:
- Housing and Eyeball: 2.40 lb (1.09 kg)
- Base (with I/O Board): 0.35 lb (0.16 kg)
|
