American Dynamics AMD-ADMPLT32C3

Name: American Dynamics AMD-ADMPLT32C3 MegaPower LT Matrix Switcher/Controller System
Brand: American Dynamics
SKU: American Dynamics AMD-ADMPLT32C3
Price: 8627.75 USD

American Dynamics AMD-ADMPLT32C3 MegaPower LT Matrix Switcher/Controller System

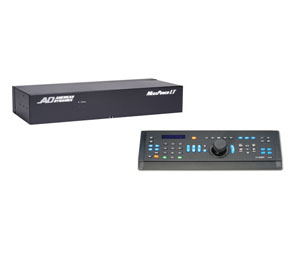

× This image is for a similar product but it will differ in size, color and/or other attributes.

American Dynamics AMD-ADMPLT32C3 MegaPower LT Matrix Switcher/Controller System

Price: $8,627.75 USD

Comments (Optional)

ADD TO CART

This item is not in stock and typically ships in 1 business day.

+ Add to My Wish List

1-844-809-3667

Sales

[email protected]

Technical Support

[email protected]

Product Description:

American Dynamics AMD-ADMPLT32C3 MegaPower LT Matrix Switcher/Controller System

Model: ADMPLT32C3
Product Highlights:

Camera Site Contro
Password Protection for Menu Entry
128 Programmable Views
16 Sequences/Tours

Switcher:

Signal System: NTSC/PAL
Video Inputs: BNC x32 (Looping)
Video Outputs: BNC x8
Control Ports

RS-485/RS-232: One 8-pin Modular RJ-45 Jack (expandable), Optional Port Expander Extends the RS-232 Port to 4
SensorNet: 1 Port, 1 Connector (16 Inputs) or 2 Ports, 2 Connectors (32 Inputs) Through 5-pin Pluggable Eurostyle Terminal Screw Connectors

Control Protocol

SensorNet: 32 Devices per Port at a Maximum Distance of 3000' (1 km) on One 22 AWG Unshielded Twisted Pair (UTP)
ADnet: 16 Devices at a Maximum Distance of 3900' (1.2 km) on Shielded/Screened Cat5 Wire or Better or Belden 8761 or Equivalent
AD-UTC: 2300' (700 m) on 20 AWG RG59/U Coax (Belden 8281 or Equivalent) or URM70 Cable
FSK Telemetry: 1148' (350 m) on 20 AWG RG59/U Coax — Baxall, Vista and Dennard Domes (via DAX)

Alarm Inputs: 4 Connectors (16 Inputs) or 8 Connectors, (32 Inputs) Through 5-pin Pluggable Eurostyle Terminal Screw Connector
Alarm Outputs: 1 Connector, 1 Output (16 Inputs) or 2 Connectors, 2 Outputs (32 Inputs) Form-C Relays Through 3-pin Eurostyle Terminal Screw Connectors
Power Requirements: 12VDC (Power Supply Included)
Power Consumption: 2A
Operating Temperature: 0°F - 104°F (0°C - 40°C)
Dimensions (W x H x D): 17.5" x 3.5" x 7.3" (445mm x 90mm x 185mm)
Weight: 4.7 kg
