American Dynamics AMD-ADMPLT16

Name: American Dynamics AMD-ADMPLT16 Matrix, MegaPower LT
Brand: American Dynamics
SKU: American Dynamics AMD-ADMPLT16
Price: 1340.40 USD

American Dynamics AMD-ADMPLT16 Matrix, MegaPower LT

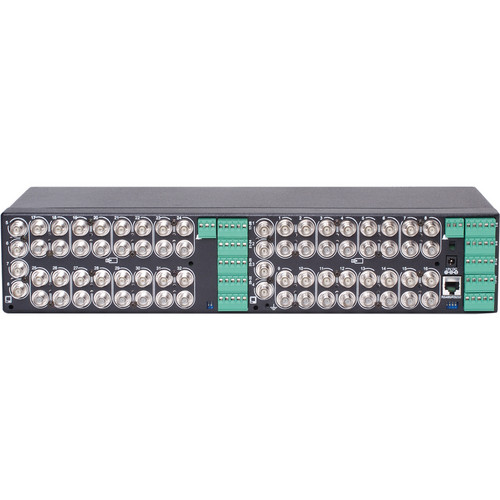

× This image is for a similar product but it will differ in size, color and/or other attributes.

American Dynamics AMD-ADMPLT16 Matrix, MegaPower LT

Price: $1,340.40 USD

Comments (Optional)

ADD TO CART

Standard - ships in 1 business day.

+ Add to My Wish List

1-844-809-3667

Sales

[email protected]

Technical Support

[email protected]

Product Description:

American Dynamics AMD-ADMPLT16 Matrix, MegaPower LT

Model: ADMPLT16
Signal System: NTSC/PAL
Video Inputs: BNC x16 (Looping)
Video Outputs: BNC x4
Control Ports

RS-485/RS-232: One 8-pin Modular RJ-45 Jack (expandable) Optional Port Expander Extends the RS-232 Port to 4
SensorNet: 1 Port, 1 Connector (16 Inputs) or 2 Ports, 2 Connectors (32 Inputs) Through 5-pin Pluggable Eurostyle Terminal Screw Connectors

Control Protocol

SensorNet: 32 Devices per Port at a Maximum Distance of 1 km (3000 ft) on One 22 AWG Unshielded Twisted Pair (UTP)
ADnet: 16 Devices at a Maximum Distance of 1.2 km (3900 ft) on Shielded/Screened Cat5 Wire or Better or Belden 8761 or Equivalent
AD-UTC: 700m (2300 ft) on 20 AWG RG59/U Coax (Belden 8281 or Equivalent) or URM70 Cable
FSK Telemetry: 350 m on 20 AWG RG59/U Coax — Baxall, Vista and Dennard Domes (via DAX)

Alarm Inputs: 4 Connectors (16 inputs) or 8 Connectors, (32 Inputs) Through 5-pin Pluggable Eurostyle Terminal Screw Connector
Alarm Outputs: 1 Connector, 1 Output (16 Inputs) or 2 Connectors, 2 Outputs (32 Inputs) Form-C Relays Through 3-pin Eurostyle Terminal Screw Connectors
Power Requirements: 12VDC (power supply included)
Power Consumption: 2A
Operating Temperature: 0°F - 104°F (0°C - 40°C)
Dimensions (WxHxD): 17.5" x 3.5" x 7.3" (445mm x 90mm x 185mm)
Weight: 4.7 kg
