American Dynamics AMD-ADMCA1LCD20B

Name: American Dynamics AMD-ADMCA1LCD20B 20" PVM LCD Monitor with Integrated Auto Iris Camera (Black)
Brand: American Dynamics
SKU: American Dynamics AMD-ADMCA1LCD20B
Price: 1984.51 USD

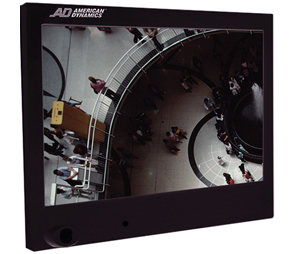

American Dynamics AMD-ADMCA1LCD20B 20" PVM LCD Monitor with Integrated Auto Iris Camera (Black)

× This image is for a similar product but it will differ in size, color and/or other attributes.

American Dynamics AMD-ADMCA1LCD20B 20" PVM LCD Monitor with Integrated Auto Iris Camera (Black)

Price: $1,984.51 USD

Comments (Optional)

ADD TO CART

This item is not in stock and typically ships in 1 business day.

+ Add to My Wish List

1-844-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:

American Dynamics AMD-ADMCA1LCD20B 20" PVM LCD Monitor with Integrated Auto Iris Camera (Black)

Model: AMD-ADMCA1LCD20B

Description:

he American Dynamics ADMCA1LCD20B 20" PVM LCD Flat Panel Monitor offers outstanding screen brightness and contrast, along with an ultra-fast 16ms response time, to produce clear 4:3 images with superior motion quality. A number of convenient features--such as selectable 6500/9300° color temperature, PAL/NTSC auto-detection, easy on-screen interface, and multiple looping inputs--make this monitor a great choice for CCTV applications. And with its integrated auto iris camera, remote control, 12V power outlet and control button lock-out, it's especially good for public view applications.

Features:

Application: CCTV, Surveillance, Intellex
LCD Size: 20"
Video System: NTSC/PAL
Resolution: 800 x 600
Response Time: 16ms
Viewing Angle: 160°
Contrast Ratio: 480:1
Brightness: 500cd/m²
Picture Control:
- Power on/off
- Adjust up/down,
- Manual on/off
- Item
- Source
Remote Control: Yes
Inputs/Outputs:
- Composite Video: BNC (x2 Input, x2 Output)
- S-Video: 4-pin mini-DIN (x1 Input, x1 Loop Output)
- VGA: 15-pin D-sub (x1 Input)
- Audio: RCA (x2 Input, x2 Output)
- 12VDC Power Jack
Power Requirements: 100-240 VAC, 50/60 Hz
Power Consumption Not specified by manufacturer
Dimensions (WxHxD): 18.2 x 15.8 x 4" (46.3 x 40.1 x 10.2 cm)
Weight: 15 lbs (6.8 kg)
