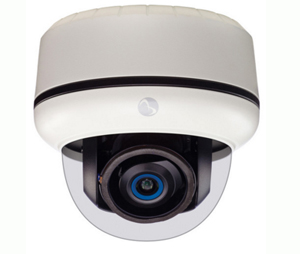

- Model: ADCI600D023
- Features:
- Superior video quality, even in low-light
- Face and blur detection
- 720p (1MP) & 1080p (2MP) resolutions
- Quick and easy installation and configuration
- One-touch autofocus and motorized zoom
- Reduced storage cost with H.264 and integrated bandwidth management analytics
- Up to five individual and programmable Regions of Interest
- UL Plenum-rated recessed mount included on all indoor models
- Specifications:
- Camera:
- Sensor: 1/2.7" inch CMOS progressive scan
- Light Sensitivity: 400 to 900nm
- Day/Night: Auto (true day/night)
- IR Illumination Optional: Yes
- Motion Detection: Yes
- Face Detection: Yes
- Privacy Zones: Yes
- Alarms: Motion, Schedule, Dry contact, Ethernet loss, Tamper detection
- Audio: Bi-directional duplex, half-duplex
- Alarm I/O: 2/1
- Video Streams: 2 simultaneous streams
- Minimum Illumination:
- 0.1 lux at F1.2 color
- 0.03 lux b/w and 0.00 lux in IR Illuminator mode
- Wide Dynamic Range: 70dB, 9 level settings
- Lens Type: Varifocal, IR corrected
- Network:
- Interface: Ethernet 10/100Base-T
- Ethernet Port: RJ-45
- Supported Protocols: TCP/IP, DHCP, HTTP, ICMP, UPnP, ARP, DNS, DDNS, PPPoE, SMTP, FTP, RTSP
- Configuration:
- Web Browser: MS IE 8
- Security: Multi-level, multi-users, IP address filtering, user access log, HTTPS
- Storage:
- Memory Card Support: Micro SDHC 2.0 up to 32GB
- Recording: Pre-alarm: Yes
- Recording format: JPEG, AVI
- Playback: Via browser using FTP
- Recording Trigger: Alarm, network loss, schedule, motion detection
- Electrical:
- Power Input: 12 VDC (included), 24 VAC and PoE IEEE 802.3 af
- Power Draw: 12 VDC (10.5 W), 24 VAC (10.5 W) and PoE (10.5 W)
- PoE Class: Class 3
- Immunity: CE: EN50130-4
- Safety: UL 60950-1
- Physical:
- Operating Temperature: 40 to 122°F (4 to 50°C)
- Outdoor: IP66/IP67 rated
- Bubble: Clear
- Dimensions: 6.18" x 5.79" (157mm x 147mm)
- Weight: 2.3 lbs (1.04 kg)
|
