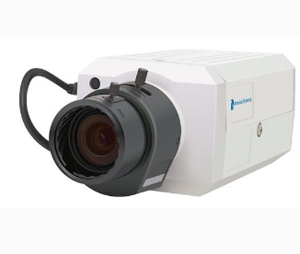

Model: ADCI400X002
Specifications:
- Video:
- Compression: H.264, MJPEG
- Frame Rate: H.264 & MJPEG: 30 ips, 896 x 720
- Camera:
- Video Streams: Dual simultaneous streams
- Imager: 1/3" Sony CMOS progressive scan
- Day/Night: Mechanical IR cut filter
- Day/Night Mode: Auto / Day / Night / Schedule
- Motion Detection: Yes, 512 independent zones with sensitivity control
- Privacy Zone: 3 independent configurable zones
- Alarms: Motion, alarm input, Ethernet loss, network/remote digital alarm input, tamper
- Audio: Bi-directional duplex, half-duplex, audio off
- Input/Output: Audio: 1 / 1; 3.5mm mini RCA jack, built-in microphone
- Alarm: 1 / 1
- Minimum Illumination: 0.2 lux at f/1.2 color
- 0.01 lux B&W
- Wide Dynamic Range: 100 dB, 9 adjustable level settings
- Lens Type: Supports CS-mount lens
- Iris: Supports DC auto iris
- Analog Video Output: 1 x BNC, 1 Vpp ± 10%, 75 O, composite, negative
- Network:
- Interface: Ethernet 10/100Base-T
- Ethernet Port: RJ-45
- Supported Protocols: TCP/IP, DHCP, HTTP, ICMP, UPnP, ARP, DNS, DDNS, PPPoE, SMTP, SNTP, FTP, UDP, RTP/RTCP/RTSP, IPv4, HTTPS, SAMBA, UPnP Port Forwarding, 3GPP
- Web Browser: MS Internet Explorer, Mozilla Firefox, Chrome
- Security: Multi-level; multi-users; IP address filtering, User access log, HTTPS RSA
- Storage:
- Card: Card Support: MMC/SD/SDHC 2.0 up to 32 GB
- Brands Verified: Toshiba, A Pacer, PQI, A-Data, Transcend, Photo Fast
- Buffer Memory: Alarm Video Buffers: 48 MB pre-alarm and post-alarm
- Recording Format: MJPEG, AVI
- Playback: Network playback via web browser
- Recording: Triggered by Schedule, Motion Detection, Alarm, Network Loss
- Management: Smart Event Management: FTP file format, SMTP file format, SD card
- Users: 8, simultaneous
- Electrical:
- Power Input: 12 VDC, 24 VAC and PoE IEEE 802.3 af
- Power Draw: 4.8 W @ 12 VDC
- 6 W @ 24 VAC and PoE
- PoE: Class 2
- Regulatory:
- IP Rating: IP66
- Emissions: FCC 107 & 109, Part 15b
- ICES-003/NMB-003, Class A
- AS/NZS CISPR22, Class A
- CE: EN55022, Class A
- Immunity: CE: EN50130-4
- Physical:
- Operating Temperature: 32°F to 122°F (0°C to 50°C)
- Dimensions (H x W x D): 2.2" x 2.7" x 4.5" (56.0 mm x 68.0 mm x 114.5 mm)
- Weight: 12.69 oz (360.00 g)
|
