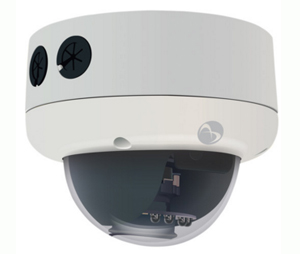

- Model: ADCI400D052
- Features:
- Wide dynamic range for clarity in backlit environments
- Low light clarity with true day/night functionality
- H.264 compression at up to 30 IPS
- Supports multiple resolution over 0.6 MP
- Dual streaming video
- Remote access to onboard storage managed by schedule, motion detection, alarm, or network loss
- Specifications:
- Camera:
- IR Range: 55' (18 m)
- Resolution: CIF, D1, 896 x 720p
- Video Streams: Dual simultaneous streams
- Sensor: 1/3" Sony CMOS progressive scan
- Lens Type: 3.3 to 12 mm varifocal auto iris DC drive lens
- Minimum Illumination: 0.2 lux (color) and 0.01 lux (b/w), f/1.2; 0.00 with IR illuminator
- Day/Night: Mechanical IR cut filter
- Day/Night Mode: Auto/Day/Night/Schedule
- Motion Detection: Yes, 512 independent zones with sensitivity control
- Programmable Privacy Zones: 3 independent configurable zones
- Alarms: Motion, alarm input, Ethernet loss, network/remote digital alarm input, tamper
- Audio: Bi-directional duplex, half-duplex, audio off
- Audio Input/Output: 1/1; 3.5 mm mini RCA Jack
- Alarm I/O: 2/1
- Wide Dynamic Range: 100 dB, 9 adjustable level settings
- Auto Iris: DC iris
- Analog Video Output: 1 Vpp ±10%, 75 ohms, composite, negative, 1 x BNC
- USB: USB 2.0 for fast IP configuration
- Network:
- Interface: Ethernet 10/100Base-T
- Ethernet Port: RJ-45
- Supported Protocols: TCP/IP, DHCP, HTTP, ICMP, UPnP, ARP, DNS, DDNS, PPPoE, SMTP, SNTP, FTP, UDP, RTP/ RTCP/RTSP, IPv4, HTTPS, SAMBA, UPnP Port Forwarding, 3GPP
- Configuration:
- Web Browser: Microsoft Internet Explorer, Mozilla Firefox, Chrome
- Security: Multi-level; multi-users; IP address filtering, user access log, HTTPS
- Storage:
- Memory Card Support: MMC/SD/SDHC 2.0; up to 32 GB
- Recording: Pre-alarm: Yes
- Buffer: Alarm Video: 48 MB pre-alarm and post-alarm
- Record Format: MJPEG, AVI
- Playback: Yes
- Triggering: Schedule, motion detection, alarm, network loss
- Event Management: FTP file format, SMTP file format, SD card
- Number of Simultaneous Users: 8
- Electrical:
- Power Input: 12 VDC (included), 24 VAC and PoE IEEE 802.3 af
- Power Draw: 12 VDC (10.5 W), 24 VAC (10.5 W) and PoE (10.5 W)
- PoE Class: Class 3
- Immunity: CE: EN50130-4
- Safety: UL 60950-1
- Physical:
- Operating Temperature: -4 to 122°F (0 to 50°C)
- Outdoor: IP66 rated
- Bubble: Clear
- Dimensions: 5.9" x 4.9" (15.0cm x 12.4cm)
- Weight: 3.97 lb (1.8 kg)
|
