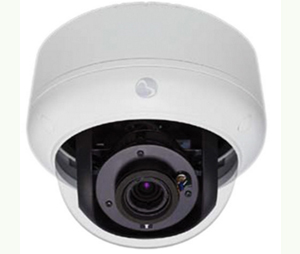

- Model: ADCI210D123
- Features:
- Requires less time to install
- Standard resolution up to D1 with remote auto focus and motorized zoom lens
- Good video quality, even in low-light
- TDN (True Day/Night) with mechanical IR cut filter
- Industry-leading outdoor durability with an IP67 rating
- WDR (Wide Dynamic Range) for viewing high-contrast lighting scenes
- H.264 compression
- Pre-alarm recording
- Powered by PoE+ IEEE 802.3at
- Easy configuration with Illustra Connec
- Integrated mount options with no additional parts
- Plenum-rated with flush mount kit (sold separately)
- UL-listed for safety
- Specifications:
- Imager: 1/2.7" CMOS progressive scan
- Lens Type: 3 to 9 mm, varifocal, IR corrected
- Video Compression: H.264, MJPEG
- Frame Rate:
- NTSC: 30 ips 720 x 480
- PAL: 25 ips 720 x 576
- Video Output: 1 Vpp, 75 O, composite, RCA service output
- Supported Resolutions: D1, 2CIF, CIF, (NTSC: 720 x 480, PAL: 720 x 576)
- True Day/Night Control: Auto
- Alarms: Motion, Schedule, Dry Contact, Ethernet Loss, Tamper Detection
- Audio: Bi-directional duplex, half-duplex
- Alarm Input: 2
- Alarm Output: 1
- Video Streams: 2 simultaneous streams
- Minimum Illumination:
- 0.1 lux at f/1.2 (color)
- 0.03 lux at f/1.2 (B/W)
- Wide Dynamic Range: 70 dB, 9 level settings
- Interface: Ethernet 10 / 100Base-TX
- Ethernet Port: RJ-45
- Supported Protocols: TCP/IP, DHCP, HTTP, ICMP, UPnP, ARP, DNS, DDNS, PPPoE, SMTP, FTP, RTSP
- Web Browser: MS IE 8
- Security: Multi-level, multi-users, IP address filtering, user access log, HTTPS
- Card: Supports microSDHC 2.0 card up to 32 GB
- Recording Format: JPEG, AVI
- Playback: Via browser
- Recording: Recording Trigger: Alarm, Network Loss, Schedule, Motion Detection
- Users: 8
- Power Input: 24 VAC, PoE IEEE 802.3af
- Power Draw: 31.5 W, 24 VAC; 25 W PoE+
- Operating Temperature:
- -22 to 122°F (-30 to 50°C) via PoE+
- -40 to 122°F (-40 to 50°C) via 24 VAC
- Dimensions (W x H): 6.18 x 5.79" (157mm x 147mm)
- Weight: 2.30 lbs (1.04 kg)
|
