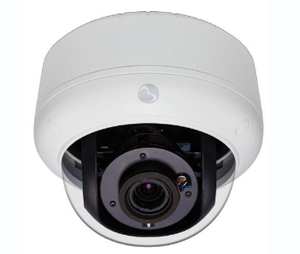

Model: ADCI210D021
Specifications:
- Operational:
- Imager: 1/2.7" CMOS progressive scan
- Lens Type: 3 to 9 mm, varifocal, IR corrected
- Video Compression: H.264, MJPEG
- Frame Rate: H.264 & MJPEG
- NTSC: 30 ips 720 x 480
- PAL: 25 ips 720 x 576
- Video Output: 1 Vpp, 75 O, composite, RCA service output
- Supported Resolutions: D1, 2CIF, CIF
- (NTSC: 720 x 480, PAL: 720 x 576)
- True Day/Night Control: Auto
- Alarms: Motion, Schedule, Dry Contact, Ethernet Loss, Tamper Detection
- Audio: Bi-directional duplex, half-duplex
- Alarm Input: 2
- Alarm Output: 1
- Video Streams: 2 simultaneous streams
- Minimum Illumination: 0.1 lux at f/1.2 (color)
- 0.03 lux at f/1.2 (B/W)
- Wide Dynamic Range: 70 dB, 9 level settings
- Network:
- Interface: Ethernet 10 / 100Base-TX
- Ethernet Port: RJ-45
- Supported Protocols: TCP/IP, DHCP, HTTP, ICMP, UPnP, ARP, DNS, DDNS, PPPoE, SMTP, FTP, RTSP
- Configuration:
- Web Browser: MS IE 8
- Security: Multi-level, multi-users, IP address filtering, user access log, HTTPS
- Storage:
- Card: Supports microSDHC 2.0 card up to 32 GB
- Recording Format: JPEG, AVI
- Playback: Via browser
- Recording: Recording Trigger: Alarm, Network Loss, Schedule, Motion Detection
- Users: 8
- Electrical:
- Power Input: 24 VAC, PoE IEEE 802.3af
- Power Draw: 5 W
- Regulatory:
- Emissions: FCC 107 & 109, Part 15b
- CE: EN55022, Class A; EN6100; 3-3
- ICES-003/NMB-003, Class A; AS/NZS CISPR22, Class A
- Immunity: CE: EN50130-4
- Physical:
- Operating Temperature: 14°F to 122°F (-10°C to 50°C)
- Dimensions (W x H): 5.1" x 4.7" (135.0mm x 120.0 mm)
- Weight: 2.00 lb (0.91 kg)
|
