Product Description:

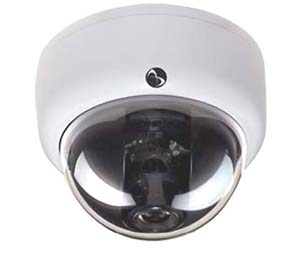

American Dynamics AMD-ADCA7DWIC4N Mini-Dome Indoor Camera
Model: ADCA7DWIC4N
Features:
Pixim Seawolf technology for good low-light performance
Varifocal auto iris lens with a focal length of 2.8 to 10mm and an aperture of f/1.4 to 2.4
High-resolution of up to 690 HTVL-E
WDR (Wide Dynamic Range) for clear images even under backlight environments
True Day/Night mode
Three-axis gimbal for easy positioning
Vandal-resistant IP66-rated outdoor housing
Service jack for second video output for camera setup
Twelve programmable privacy zones
12VDC / 24VAC power supply
Specifications:
Imager: Pixim Seawolf D8800C 1/3? sensor
Horizontal Resolution: 690 HTVL-E
Active Pixel Count (H x V): 758 x 540
Lens: Varifocal
Iris: Auto
Focal Length: 2.8 to 10 mm
Aperture: f/1.4 to 2.4
Scanning Frequency: 60 Hz
Minimum Illumination:
Day Mode: 0.1 lux
Night Mode: 0.03 lux
Iris Control: DC auto
S/N Ratio: >50 dB
Synchronization: Internal or line lock
Shutter Speed: 1/60 to 1/30720
IR Illuminator: 850 nm / 65.62' (20.00 m)
AGC (Automatic Gain Control): 0 to 60 dB
Wide Dynamic Range: 102 dB typical, 120 dB maximum
AES: Yes
BLC: Full range
White Balance: ATW, AWB, Manual
True Day/Night Control: True Day/Night
Digital Zoom: 1 to 8x
Brightness: Adjustable
Sharpness: Adjustable
Noise Reduction: 3D motion adaptive
Programmable Privacy Zones: 12
Mirror: Horizontal, vertical, or both
On-Screen Display: Camera ID and menus
Connectors Video Output: Composite
Lens Connector: DC, manual
Voltage: 10.8 to 13.3 VDC, 19.2 to 28.8 VAC
Power Consumption: 2.88 W, 4.5 W, maximum when True Day/Night on
Housing: Polycarbonate, RAL 9003, Pantone 705
Operational Temperature: 14 to 122°F (-10 to 50°C)
Storage Temperature: -4 to 140°F (-20 to 60°C)
Relative Humidity: 90% (non-condensing)
Dimensions (D x H): 4.7" x 3.9" (120.2 mm x 98.7 mm)
Weight: 8.82 oz (250.00 g)
