Product Description:

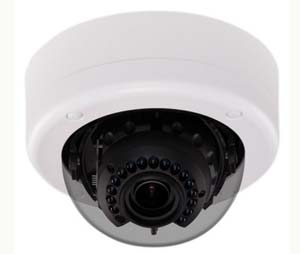

American Dynamics AMD-ADCA5DBOT3RN Mini-Dome Outdoor Camera
Model: ADCA5DBOT3RN
Features:
1/3" Sony Effio CCD image sensor for true color reproduction
Varifocal auto iris lens with focal length of 9 to 22mm and an aperture of f/1.2
True Day/Night mode
Three-axis gimbal for easy positioning
High-impact, vandal-resistant dome housing
IP66-rated enclosure for protection against dust particles and water
Quick-install adapter is included for simple flush mounting options
Eight programmable privacy zones
On-screen display for easy setup
Service jack for second video output for camera setup
12VDC / 24VAC power supply
Specifications:
Imager: 1/3? Sony Effio CCD image sensor
Horizontal Resolution: 700 TVL
Active Pixel Count (H x V): 976 x 494
Lens: Varifocal
Iris: Auto
Focal Length: 9 to 22 mm
Aperture: f/1.2
Scanning Frequency: 60 Hz
Minimum Illumination:
Day Mode: 0.3 lux
Night Mode: 0.03 lux, f/1.2
Iris Control: DC auto
S/N Ratio: >50 dB (100 IRE, f/1.2)
Synchronization: Internal
Shutter Speed: 1/60 to 1/10000
IR Illuminator: 850 nm / 65.62' (20.00 m)
AGC (Automatic Gain Control): Auto / Manual
AES: 1/60 to 1/10000
BLC: Full range
White Balance: Auto, Manual, Push, Push Lock, User 1, 2, Anti CR
Auto White Balance Range: 2700 to 9700 K
True Day/Night Control: Auto, Color, B&W
Brightness: 0 to 255 level
Sharpness: 0 to 255 level
Digital Noise Reduction (DNR): 2D, 3D motion adaptive (0 to 255)
Motion: 4 area (1 alarm out)
Programmable Privacy Zones: 8
Mirror: Horizontal and vertical
On-Screen Display: Camera name
Connectors Video Output: Composite
Voltage: 10.8 to 13.3 VDC, 19.2 to 28.8 VAC
Power Consumption: 2.8 W, 5.2 W, maximum when True Day/Night on
Housing: Polycarbonate, RAL 9017, Pantone Processed Black
Operational Temperature: 14 to 122°F (-10 to 50°C)
Storage Temperature: -4 to 140°F (-20 to 60°C)
Relative Humidity: 90% (non-condensing)
Dimensions (D x H): 5.35" x 3.7" (136 mm x 94.2 mm)
Weight: 18.7 oz (530.00 g)
Data Sheet
