Product Description:

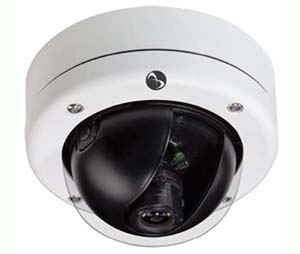

American Dynamics AMD-ADCA3DWOC3N Mini-Dome Outdoor Camera
Model: ADCA3DWOC3N
Features:
Varifocal auto iris lens with focal length of 9 to 22mm and an aperture of f/1.4
Three-axis gimbal camera adjustment with 360° pan provides flexibility in scene selection
Digital noise reduction corrects imperfections on an image
Auto White Balance finds optimal settings for clear images
Quick-install adapter is included for simple flush mounting options
Day & Night switching for low light conditions
Eight programmable privacy zones
12VDC / 24VAC power supply
Specifications:
Imager: 1/3? Format Interline CCD sensor
Horizontal Resolution: 600 TVL
Active Pixel Count (H x V): 768 x 494
Lens: Varifocal
Iris: Auto
Focal Length: 9 to 22 mm
Aperture: f/1.4
Scanning Frequency: 2:1 Interlace
Illumination: Minimum 0.55 lux (50 IRE, f/1.4, AGC maximum)
Iris Control: DC auto
S/N Ratio: 48 dB (100 IRE)
Synchronization: Internal
Shutter Speed: MES 1/60, FLK; 1/250 to 1/100000, auto
AES: Auto luminance control 1/60 to 1/100000 sec (maximum)
BLC: 2 zone on, off, HLC
White Balance: Auto
True Day/Night Control: Auto, Color, B/W, External
Brightness: 0 to 255 level
Sharpness: 0 to 31 level
Programmable Privacy Zones: 8
Connectors: BNC Composite Video Output
Lens Connector: DC, manual
Voltage: 12 ± 10% VDC and 24 ± 20% VAC
Power Consumption: 2.6 W maximum
Housing: Polycarbonate, RAL 9003, Pantone 705
Operational Temperature: 14 to 122°F (-10 to 50°C)
Storage Temperature: -4 to 140°F (-20 to 60°C)
Relative Humidity: 90% (non-condensing)
Dimensions (D x H): 5.35" x 3.7" (136.0 mm x 94.2 mm)
Weight: 18.7 oz (530.00 g)
