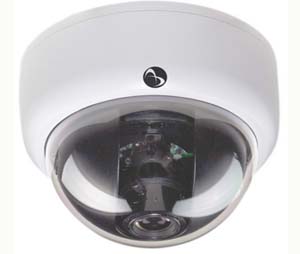

American Dynamics AMD-ADCA3DWIC3P Mini-Dome Indoor Camera
×
This image is for a similar product but it will differ in size, color and/or other attributes.
×
This product review video is for a similar product but it will differ in size, color and/or other attributes.
Price:
$
188.46 USD
Comments
(Optional)
In Stock Ready for Shipment
ADD TO CART
This item is not in stock and typically ships in 1 business day.
Check Inventory
Request Quote
No Minimum
There is no minimum quantity required for this product for quantities up to the level listed below.
Minimum Order Levels Apply
This item has minimum order levels that need to be met.
Check Inventory Levels
Enter your email address and we will check with all available sources and get back to you with exact inventory levels and estimated shipping times.
Qty. Needed:
Request Quote
Enter the qty needed and we will generate a quote and save your order in our system.
You will not be charged and we will not fulfill the order.
Qty. Needed:
+ Add to My Wish List
1-844-809-3667
Sales
[email protected]
Technical Support
[email protected]
Product Description:
American Dynamics AMD-ADCA3DWIC3P Mini-Dome Indoor Camera
Model: ADCA3DWIC3P
Features:
Varifocal auto iris lens with focal length of 9 to 22mm and an aperture of f/1.4
Three-axis gimbal camera adjustment with 360° pan provides flexibility in scene selection
Digital noise reduction corrects imperfections on an image
Auto White Balance finds optimal settings for clear images
Quick-install adapter is included for simple flush mounting options
Day & Night switching for low light conditions
Eight programmable privacy zones
12VDC / 24VAC power supply
Specifications:
Imager: 1/3? Format Interline CCD sensor
Horizontal Resolution: 600 TVL
Active Pixel Count (H x V): 752 x 582
Lens: Varifocal
Iris: Auto
Focal Length: 9 to 22 mm
Aperture: f/1.4
Scanning Frequency: 2:1 Interlace
Illumination: Minimum 0.55 lux (50 IRE, f/1.4, AGC maximum)
Iris Control: DC auto
S/N Ratio: 48 dB (100 IRE)
Synchronization: Internal
Shutter Speed: MES 1/60, FLK; 1/250 to 1/100000, auto
AES: Auto luminance control 1/60 to 1/100000 sec (maximum)
BLC: 2 zone on, off, HLC
White Balance: Auto
True Day/Night Control: Auto, Color, B/W, External
Brightness: 0 to 255 level
Sharpness: 0 to 31 level
Programmable Privacy Zones: 8
Connectors: BNC Composite Video Output
Lens Connector: DC, manual
Voltage: 12 ± 10% VDC and 24 ± 20% VAC
Power Consumption: 2.6 W maximum
Housing: Polycarbonate, RAL 9003, Pantone 705
Operational Temperature: 14 to 122°F (-10 to 50°C)
Storage Temperature: -4 to 140°F (-20 to 60°C)
Relative Humidity: 90% (non-condensing)
Dimensions (D x H): 4.7" x 3.9" (120.2 mm x 98.5 mm)
Weight: 8.82 oz (250.00 g)
