American Dynamics AMD-ADCA3BWO3RN

Name: American Dynamics AMD-ADCA3BWO3RN Bullet Security Camera with Lens
Brand: American Dynamics
SKU: American Dynamics AMD-ADCA3BWO3RN
Price: 184.02 USD

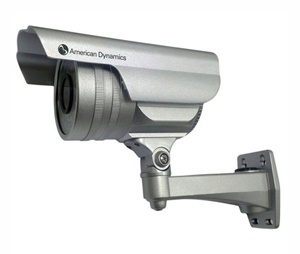

American Dynamics AMD-ADCA3BWO3RN Bullet Security Camera with Lens

× This image is for a similar product but it will differ in size, color and/or other attributes.

American Dynamics AMD-ADCA3BWO3RN Bullet Security Camera with Lens

Price: $184.02 USD

Comments (Optional)

ADD TO CART

This item is not in stock and typically ships in 1 business day.

+ Add to My Wish List

1-844-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:

American Dynamics AMD-ADCA3BWO3RN Bullet Security Camera with Lens

Features

Model: ADCA3BWO3RN
Operational:

Imager: 1/3" Format Interline CCD Sensor
Horizontal Resolution: 600 TVL
Active Pixel Count (H x V): NTSC - 768 x 494, PAL - 752 x 582
Lens: 3.8-9.5mm: F1.18-2.7 and 9-22mm: F1.4-1.6
Scanning Frequency: 2:1 Interlace
Min. Scene Illumination: 0 Lux (IR on); 0.55 Lux (50IRE, F1.4, AGC max., IR off)
Iris Control: Video/DC Auto
S/N Ratio: 48 dB (100 IRE)
Synchronization: Internal
Shutter Speed: MES 1/60 (NTSC)/ MES 1/50 PAL, FLK, 1/250-1/100000, Auto
IR Illuminator: 850nm/50m (Outdoor); 850mm/30m (Indoor)

Controls:

AGC: Low, Middle, High, Off
AGC Dynamic Range: 70 IRE-100 IRE
AES: Auto Luminance Control 1/60-1/100000 sec. max. (NTSC), Auto Luminance Control 1/50-1/100000 sec. max. (PAL)
BLC: 2 Zone On, Off, HLC
White Balance: Auto
Auto White Balance Range: AW1 (2700K-9700K), ATW2 (2000K-20000K), AWC, Manual
Day/Night: Auto, Color, B/W, Ext
Brightness: 0-255 Level
Sharpness: 0-31 Level
DWDR: On, Off
Noise Reduction: On, Off
Privacy Zones: Eight Programmable
Mirror: On, Off
On-screen Display: On, Off
Back Focus: CS Mount 12mm +/- 1.0mm
