American Dynamics AMD-ADCA3BWI5RN

copy to clipboard

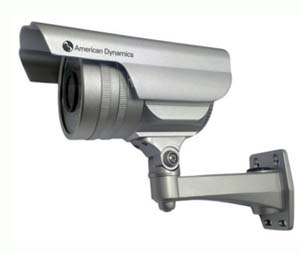

American Dynamics AMD-ADCA3BWI5RN Indoor Bullet Camera

enlarge
enlarge
× This image is for a similar product but it will differ in size, color and/or other attributes.
American Dynamics AMD-ADCA3BWI5RN  Indoor Bullet Camera
More from American Dynamics
Price: $118.84 USD
Ships From
Comments (Optional)
This item is not in stock and typically ships in 1 business day.

1-844-809-3667

Sales
Technical Support
Product Description:
American Dynamics AMD-ADCA3BWI5RN Indoor Bullet Camera
  • Model: ADCA3BWI5RN
  • Features:
    • Day/Night Switching
    • Built-In IR Illuminators
    • 1/3? Format Interline CCD sensor
    • Fixed auto iris lens with a focal length of 3.6mm and an aperture of f/2.0
    • Digital noise reduction corrects imperfections on an image
    • Auto White Balance finds optimal settings for clear images
    • Quick-install adapter is included for simple flush mounting options
    • Day & Night switching for low light conditions
    • Built-in IR illumination array allows operation in complete darkness
    • Eight programmable privacy zones
    • Quick installation with wall mount
    • Conforms with the UL60950 and CSAC22.2 No. 60950 safety standards
    • 12VDC power supply
    • RoHS (2002/95/EC) compliant
  • Specifications:
    • Imager: 1/3? Format Interline CCD sensor
    • Horizontal Resolution: 600 TVL
    • Active Pixel Count (H x V): 768 x 494
    • Lens: 3.6 mm f/2.0
    • Scanning Frequency: 2:1 Interlace
    • Minimum Illumination: 0 lux with IR on; 0.55 lux (50 IRE, F1.4, AGC maximum) with IR off
    • Iris Control: Video / DC auto
    • S / N Ratio: 48 dB (100 IRE)
    • Synchronization: Internal
    • Shutter Speed: MES 1/60, FLK, 1/250 to 1/100,000, Auto
    • IR Illuminator: 850 mm
    • IR Range: 98.4' (30.0 m)
    • AGC Level: Low, Middle, High, Off
    • Dynamic Range: AGC: 70 to 100 IRE
    • AES: Auto luminance control 1/60 to 1/100000 sec
    • BLC: 2 zone On, Off, HLC
    • White Balance: Auto
    • Auto White Balance Range: AW1 (2700 to 9700 K), ATW2 (2000 to 20000 K), AWC, Manual
    • Day/Night: Auto, Color, B/W, Ext
    • Brightness: 0 to 255 level
    • Sharpness: 0 to 31 level
    • Programmable Privacy Zones: 8
    • Back Focus: CS mount 12 ± 1 mm
    • Connectors: Composite Video Output: 75 O BNC
    • Voltage: 12 VDC ± 10%
    • Power Consumption: 2.6 W maximum
    • Housing: Aluminum, Silver RAL 9022 (Pantone 877C)
    • Temperature: Operational: 14 to 122°F (-10 to 50°C); Storage: -4 to 140°F (-20 to 60°C)
    • Relative Humidity: 90% non-condensing
    • Dimensions (D x L): 2.76" x 6.71" (70.00 mm x 170.50 mm)
