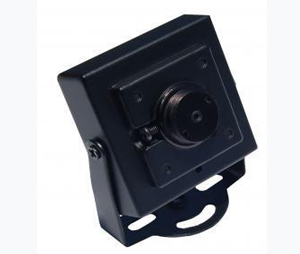

Alpha Communications ALH-2850HD

Model: 2850HD

Features:

• The high sensitivity of 0 lux (when IR ON) is achieved by using an advanced 1/3" inch SONY Effio-E HD 1/3 CCD sensor
• The Electronic Shutter and AGC allow the camera to be used in environments with varying light levels.
• Small size (H x W x D): 1.375" x 1.375" x 0.75" (35mm x 35mm x 20mm)
• Supplied with Mounting Bracket and plug-in wiring harness connectors

Specifications:

• Picture Element: SONY 1/3 Effio-E HD CCD sensor (NTSC: 976h x 494v)
• Horizontal Resolution: 700 TV Lines
• Min. Illumination: 0 lux (when IR ON)
• S/N Ratio: More than 52dB (AGCOFF)
• Electronic Shutter: NTSC:1/50(1/60)-1/100,000( sec)
• Video Output: 1.0V p-p, 75 ohm
• Power Source: 12VDC+/-10%
• Lens: Flat-Type Pin-Hole Lens f=3.7mm
• Dimensions: 1.50"h x 1.50"w x 0.75"d (39mm x 39mm x 20mm)
• Operating Temperature: -10°C to + 50°C (14°F to 122°F)
• ES: 1/10,000
• AWB: YES
• AGC: YES
• Power: +12VDC - using model number SS12P Power Supply
• Video Connector: Connects to Male BNC
