Adams Rite 26-0569

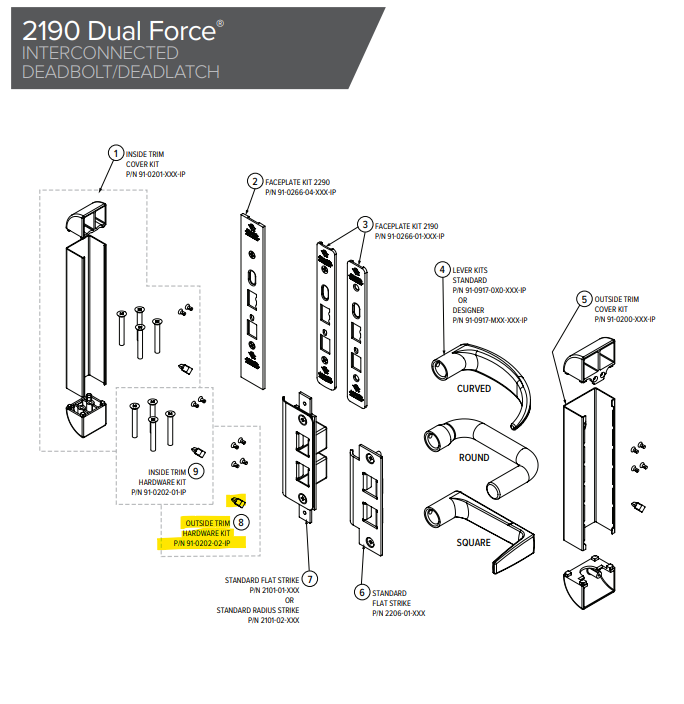

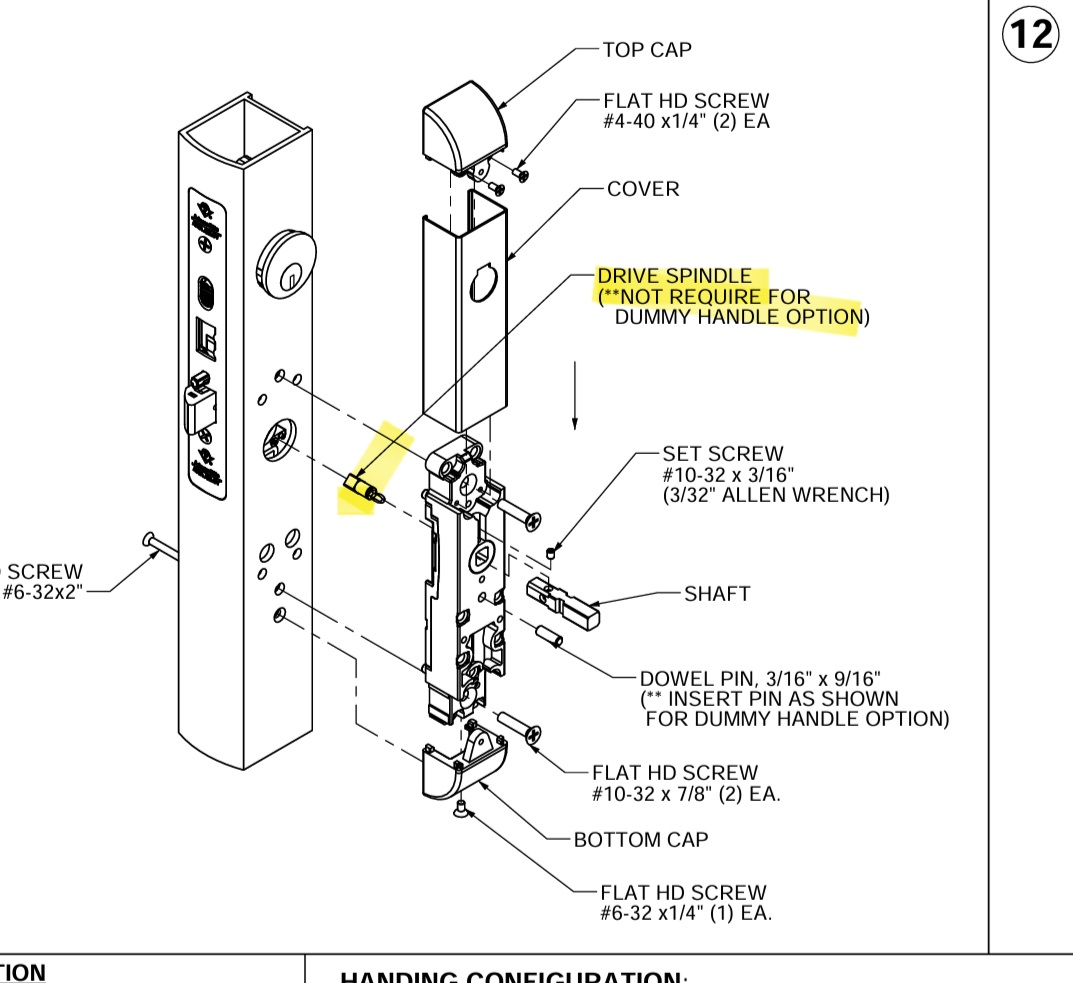

A: We do sell the Drive Spindle for the 2190 trim however the spindle alone isnt an available part that is separate from the hardware kit but you can order the outside hardware kit as it would be supplied with it. Please see highlighted part here:

View Image

For an 1-3/4" thick door, the part number is 91-0202-02 as seen here:

Click Here

Plese note the longer spindle wouldnt be needed if it is the standard 1-3/4 door.

For a 3" thick door, the part number is 2190-TDK-01 as seen here:

Click Here
