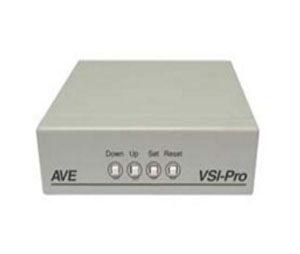

AVE AVE-VSIPRO Video Serial Interface

enlarge

enlarge

× This image is for a similar product but it will differ in size, color and/or other attributes.

AVE AVE-VSIPRO Video Serial Interface

Price: $640.07 USD

Ships From

Comments (Optional)

This item is not in stock and typically ships in 1 business day.

+ Add to My Wish List

1-773-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:

AVE AVE-VSIPRO Video Serial Interface

Model: VSIPRO
Features:

56 register selections
User selectable hardware communications
Serial output of all data or exceptions to printers, computers, modems and DVRs
Programmable time-stamp on exception output
Time/Date Searchng with Compatible DVR
Universal time/date format
100 lines exception history buffer
16 triggered text associated with 16 alarms
2 built-in alarm outputs
Powerful data filtering algorithms
24 field programmable exceptions with numeric range
Programmable alarm outputs.
On-screen titler up to 40 characters
Built-in test mode
Upload/download programming to a PC or another VSI-Pro
Data captured either to the memory or to the serial port

Specifications:

Video In (BNC): 1V P-P Terminated 75 Ohms +/- 20%
Video Out (BNC): 1V P-P Terminated or Unterminated
Video S / N: Better than 50dB
Video B / W: Better than 7MHz
Power (DC Coax 2.1mm x 5.5mm): 9-12VDC, 170mA
Battery Backup NiMH: 1 Year with 24 Hour Charge
Stop Bits: 7 or 8
Alarm Outputs Pin 1 & 9: 32K Bites
Screen Update Delay 0.5s: 8 Levels of Gray
Auto Scolling from Last Line: 8 Levels of Gray
