ASI 20655-B-1824

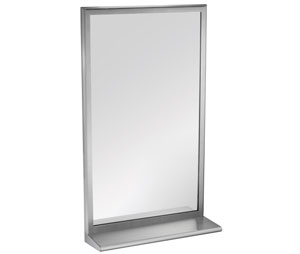

ASI 20655-B-1824 18" x 24" Roval™ Inter-Lok Stainless Steel Framed Tempered Glass Mirror with Shelf

× This image is for a similar product but it will differ in size, color and/or other attributes.

Quote Only Item

This item must be quoted prior to order. Please Contact Us for further details.

Sales

Technical Support

Product Description:


ASI 20655-B-1824 18" x 24" Roval™ Inter-Lok Stainless Steel Framed Tempered Glass Mirror with Shelf

Roval™ Inter-Lok Stainless Steel Framed Tempered Glass Mirror with Shelf Width: 18" Height: 24" Reflective Surface: Tempered Glass - 1/4" (6mm) thick polished tempered glass with two coats of silver applied. The silver is hermeticallysealed by electroplating with a heavy uniform coating of copper. Back of mirror is finished and protected with a thick coatof heavy waterproof paint Glazing meets Federal Specification #DD-G1403B, Amendment 1 and ASTM- C- 1048-92 Image Quality: Good Frame Material: 18 gauge type 304 stainless steel with satin finish and polished seamless mitered corners Shelf Width: 6" Shelf Material: 18 gauge type 304 stainless steel with satin finish Warranted for 15 years against silver spoilage.	Tech Sheet Maintanance

Installation

Install bracket level and plumb as per diagram location using No. 10 x 1" (M5 x 25) self-tapping pan head screws (by others). Hang mirror on bracket and tighten locking screws at top & bottom. For compliance with ADA Accessibility Guidelines, bottom edge of reflecting surface should be no higher than 40" (1016mm) above finished floor.
