ASI 20650-B-2448
ASI 20650-B-2448

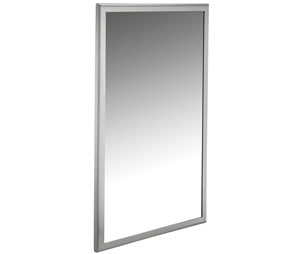

ASI 20650-B-2448 24" x 48" Roval™ Inter-Lok Stainless Steel Framed Tempered Glass Mirror
×
This image is for a similar product but it will differ in size, color and/or other attributes.
×
This product review video is for a similar product but it will differ in size, color and/or other attributes.
+ Add to My Wish List
Quote Only Item
This item must be quoted prior to order. Please
Contact Us
for further details.
1-844-809-3667
Sales
sales@absupply.net
Technical Support
tech@absupply.net
Product Description:
ASI 20650-B-2448 24" x 48" Roval™ Inter-Lok Stainless Steel Framed Tempered Glass Mirror
Roval™ Inter-Lok Stainless Steel Framed Tempered Glass Mirror
Width: 24"
Height: 48"
Reflective Surface: Tempered Glass - 1/4" (6mm) thick polished tempered glass with two coats of silver applied. The silver is hermeticallysealed by electroplating with a heavy uniform coating of copper. Back of mirror is finished and protected with a thick coatof heavy waterproof paint
Glazing meets Federal Specification #DD-G1403B, Amendment 1 and ASTM- C- 1048-92
Image Quality: Good
Frame Material: 18 gauge type 304 stainless steel with satin finish and polished seamless mitered corners. Unitized all welded construction. Exposed surfaces have satin finish. Edges and corners are burr free.
The gently radiused edges uniquely complement the curves of the ASI Roval™ Collection.
Warranted for 15 years against silver spoilage.
Tech Sheet
Maintanance
Installation
Install bracket level and plumb as per diagram location using No. 10 x 1" (M5 x 25) self-tapping pan head screws (by others).
Hang mirror on bracket and tighten locking screws at top & bottom.
For compliance with ADA Accessibility Guidelines, bottom edge of reflecting surface should be no higher than 40" (1016mm) above finished floor.
