ASI 0600-T-L-1830

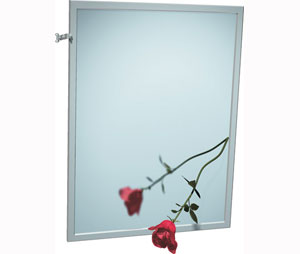

ASI 0600-T-L-1830 18" x 30" Adjustable Tilt InterLok Angle Frame Laminated Glass Mirror

× This image is for a similar product but it will differ in size, color and/or other attributes.

Quote Only Item

This item must be quoted prior to order. Please Contact Us for further details.

Sales

Technical Support

Product Description:


ASI 0600-T-L-1830 18" x 30" Adjustable Tilt InterLok Angle Frame Laminated Glass Mirror

Adjustable Tilt InterLok Angle Frame Laminated Glass Mirror Width: 18" Height: 30" Reflective Surface: Laminated Glass - Mirror is fabricated with an interlayer of 1/32" (.8mm) thick vinyl bonded between two 1/8" (3mm) thick sheets of No.1 quality polished plate glass with back silver coated and hermetically sealed with a uniform coating of electrolytic copper plating. Back of mirror is finished and protected with a thick coat of heavy-duty waterproof paint. Laminated glass meets the performance criteria of Federal Spec. DD-M-451 and ANSI Z87.1 specifications and complies with CPSC standards 16 CR 1201 (1) 11. Image Quality: Excellent Frame Type: Angle Frame Frame Material: fabricated of 18 gauge stainless steel with corners welded and ground smooth Mirror is tapered from 4" at top to 1" at bottom Designed to provide easy visibility for wheelchair patients or return to upright position. Tilts a full 6" with bottom mounted on full width stainless steel piano hinge.	Tech Sheet Maintanance

Installation

Place brackets right and left of mirror frame using No. 8-32 machine screws (supplied). Secure piano hinge to wall with No. 10 self tapping screws (by others). Mount pivot brackets to wall. For compliance with ADA Accessibility Guidelines, bottom edge of reflecting surface should be no higher than 40" above finished floor(AFF).
