ASI 0537-E-1630

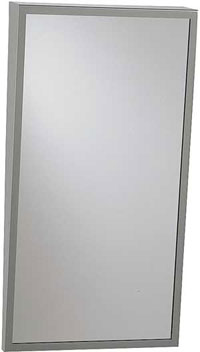

ASI 0537-E-1630 16" x 30" Fixed Tilt Plexiglass Mirror with Shelf

× This image is for a similar product but it will differ in size, color and/or other attributes.

Quote Only Item

This item must be quoted prior to order. Please Contact Us for further details.

Sales

Technical Support

Product Description:


ASI 0537-E-1630 16" x 30" Fixed Tilt Plexiglass Mirror with Shelf

Fixed Tilt Plexiglass Mirror with Shelf Width: 16" Height: 30" Reflective Surface: Plexiglass - Shall be 1/4" (6mm) thick acrylic plastic, lightweight and highly shock resistant Image Quality: Very Good Frame Material: Alloy 18-8 stainless steel, type 304, 20 gauge, all exposed surfaces shall have No. 4 satin finish. Face shall be one piece construction free of miters or spot welded seams. Mirror is tapered from 4" at top to 1" at bottom Shelf Depth: 6" Shelf Material: 18 gauge Satin Stainless Steel Shelf Offers visibility for wheelchair patients	Tech Sheet Maintanance

Installation

Surface mount unit on wall or partition using four (4) ? 10 self tapping pan head or round head screws (by others). Mounting holes through back are keyhole slots for hanging unit on pre-installed screws. Unit requires 5/8" [16] clearance at top to engage screws in keyhole slots. For compliance with ADA Accessibility Guidelines, bottom of reflecting surface should be located 40" (1016mm) max. above finished floor.
